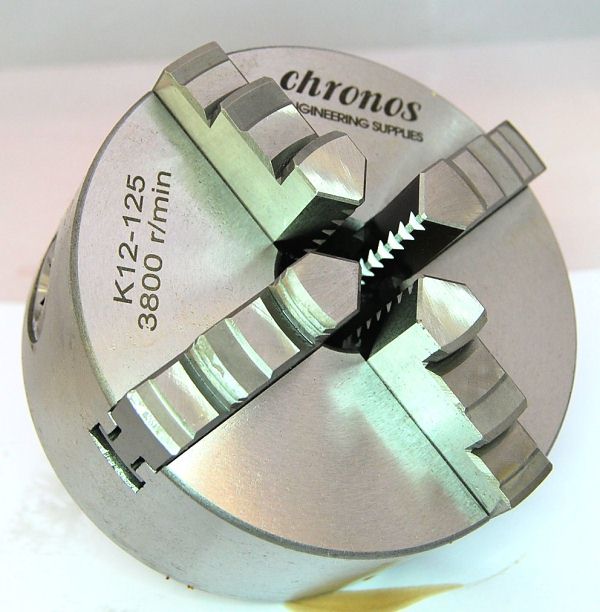

125mm 4 Jaw Self Centering Lathe Chuck- SORRY OUT OF STOCK
£69.00.
NEW REAR MOUNT 4 JAW SELF CENTERING CHUCK
Features:
1.Short cylindrical center mounting.
2.Model K12 chucks are provided with one-piece jaws (which including a set of internal jaws and a set of external ones).
3.Each set of jaws are serialized in their own set
4.Material:Hardened Steel Jaws – Cast Iron Body
5.High precision: 0.05mm
Specifications:
Material:Hardened Steel Jaws – Cast Iron Body
Model: K12-125
Max RPM: 3800 r/min
Jaw: 4 Jaw
High precision: =0.05mm
Lathe Chuck:
Diameter: 125mm(4.921″)
Thickness: 58mm(2.283″)
Center Hole: 30mm(1.181″)
Bolt Circle Diameter: 108mm(4.252″)
Recess 95mm
Runout: 0.003″
Internal Jaw:
Clamping Range A-A1: 2.5- 40mm(0.098″- 1.575″)
Jamming Range B-B1: 38- 125mm(1.496″- 4.921″)
External Jaw
Clamping Range C-C1: 38- 110mm(1.496″- 4.331″)
Package includeds:
1 x Self-Centering Jaw
3 x Inside jaws
3 x outside jawslarge
1 x safety chuck key
3 x mounting bolts
Out of stock
