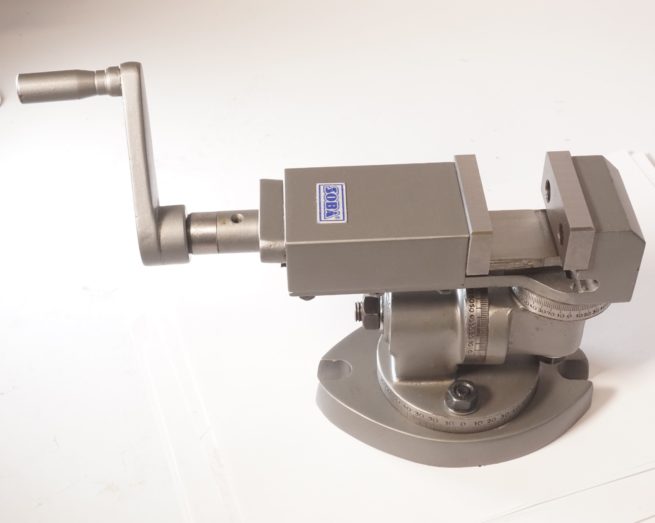

Manufactured from close grained high tensile seasoned cast iron

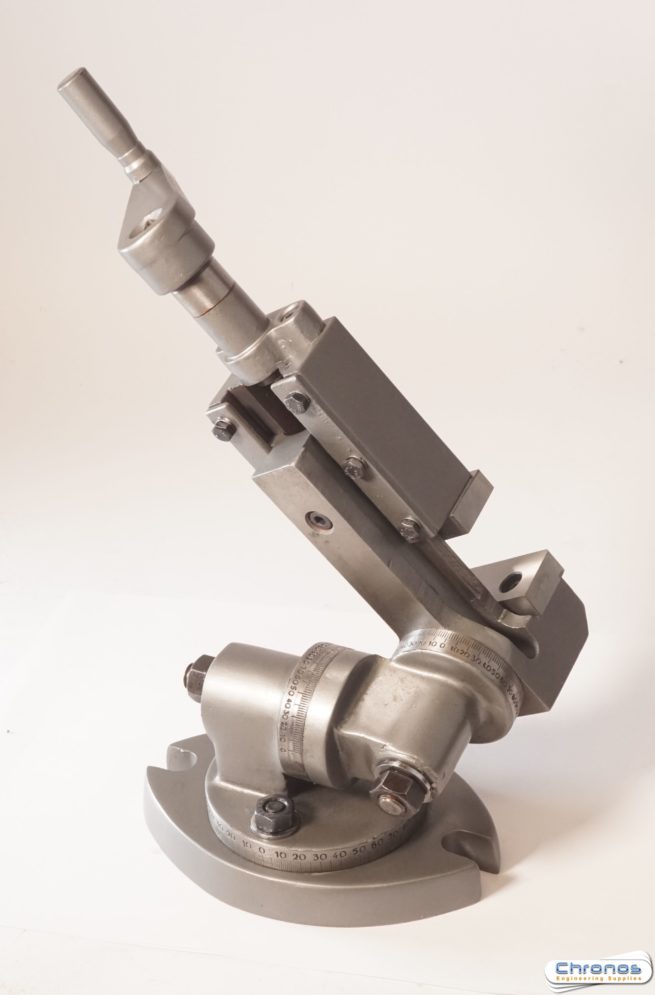

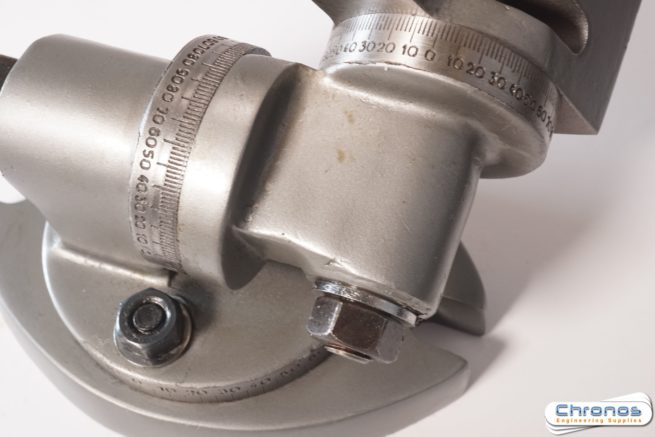

These vices have two angular slides which allow the work piece to be set at any desired angle

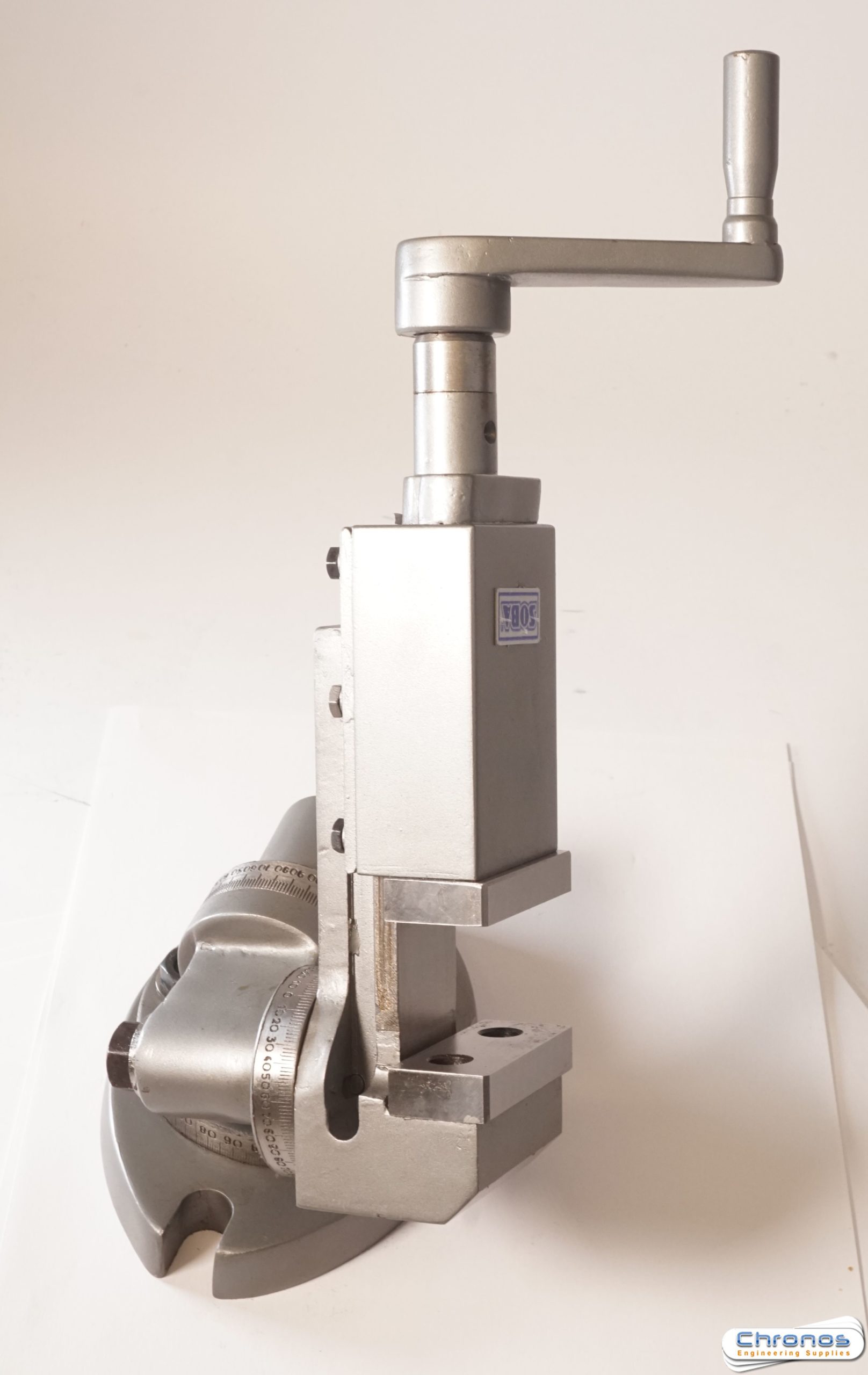

45′ tilting range on either side and 90′ vertical indexing

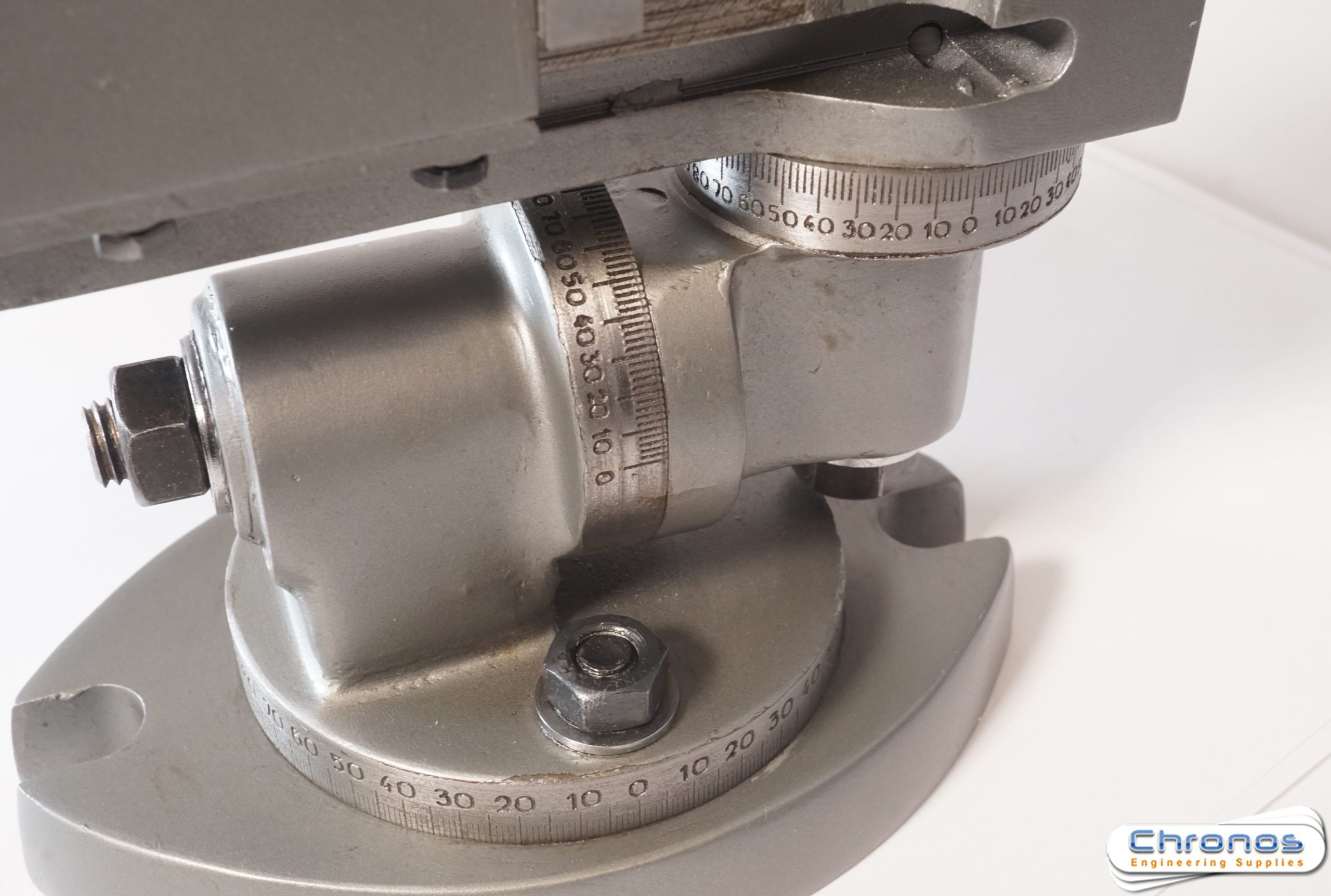

The 360′ swivel base further allows rotation along the vertical axis.

Jaws are fully hardened and ground with a parrllelism of 0.0012″ (30 microns)

Hardness of jaws is 55+- HRC

Jaw Depth – 1″/25mm
Jaw Width – 2″/50mm
Jaw Opening – 2″/50mm
