8 inch Mini Shear and Brake

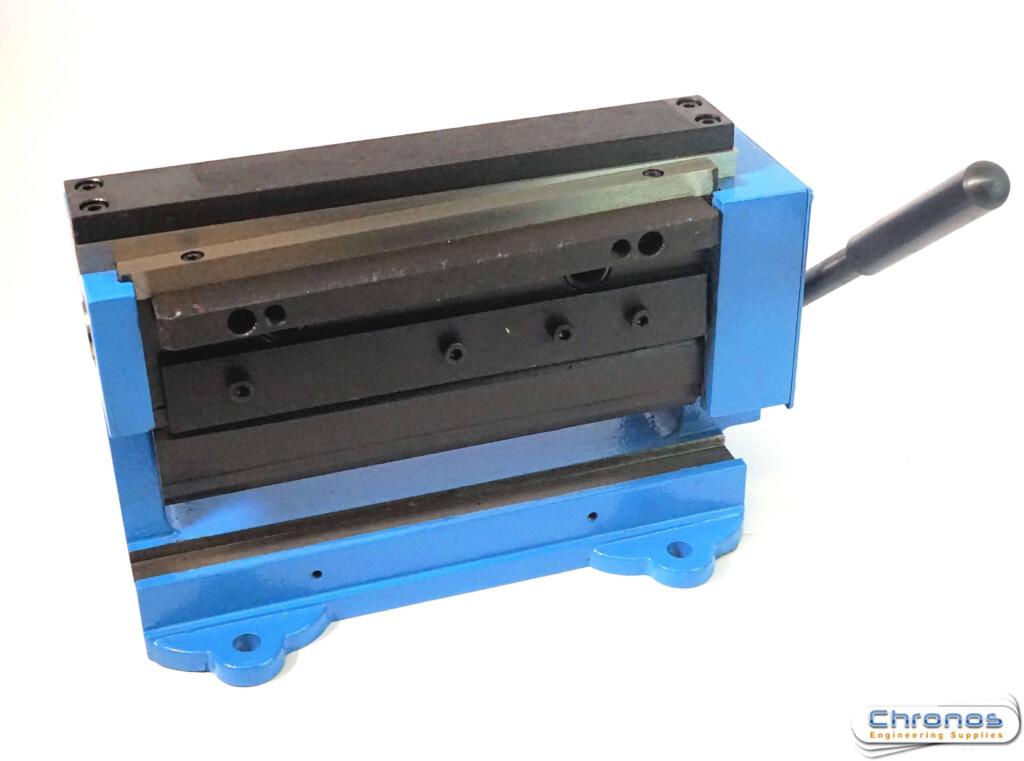

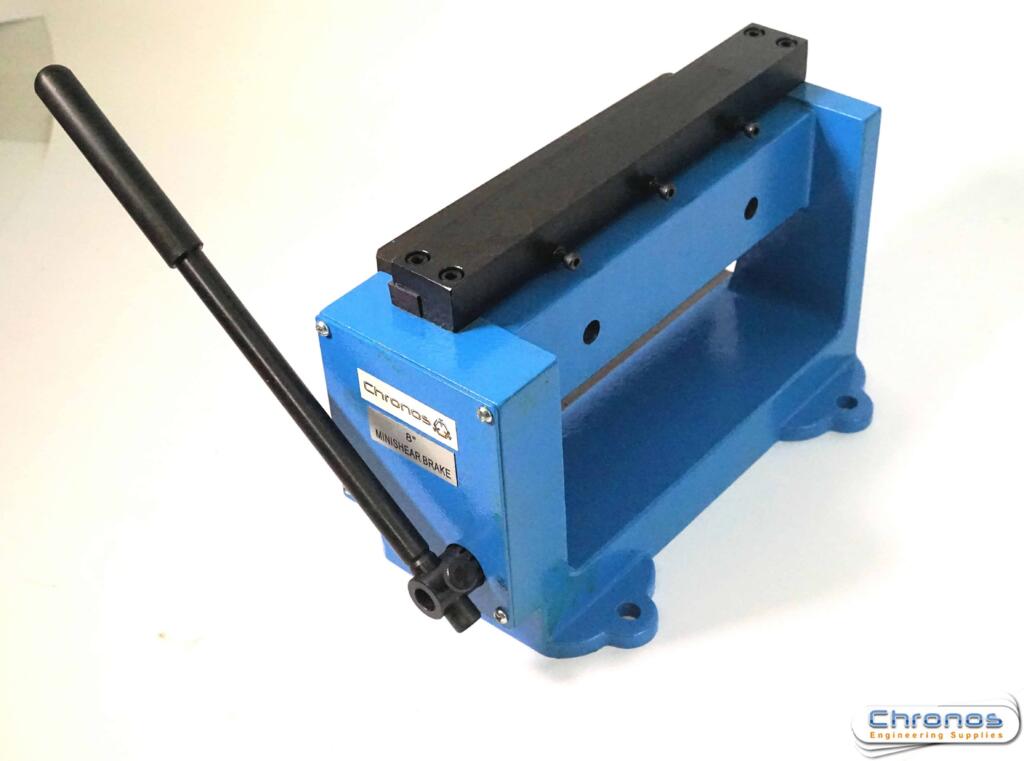

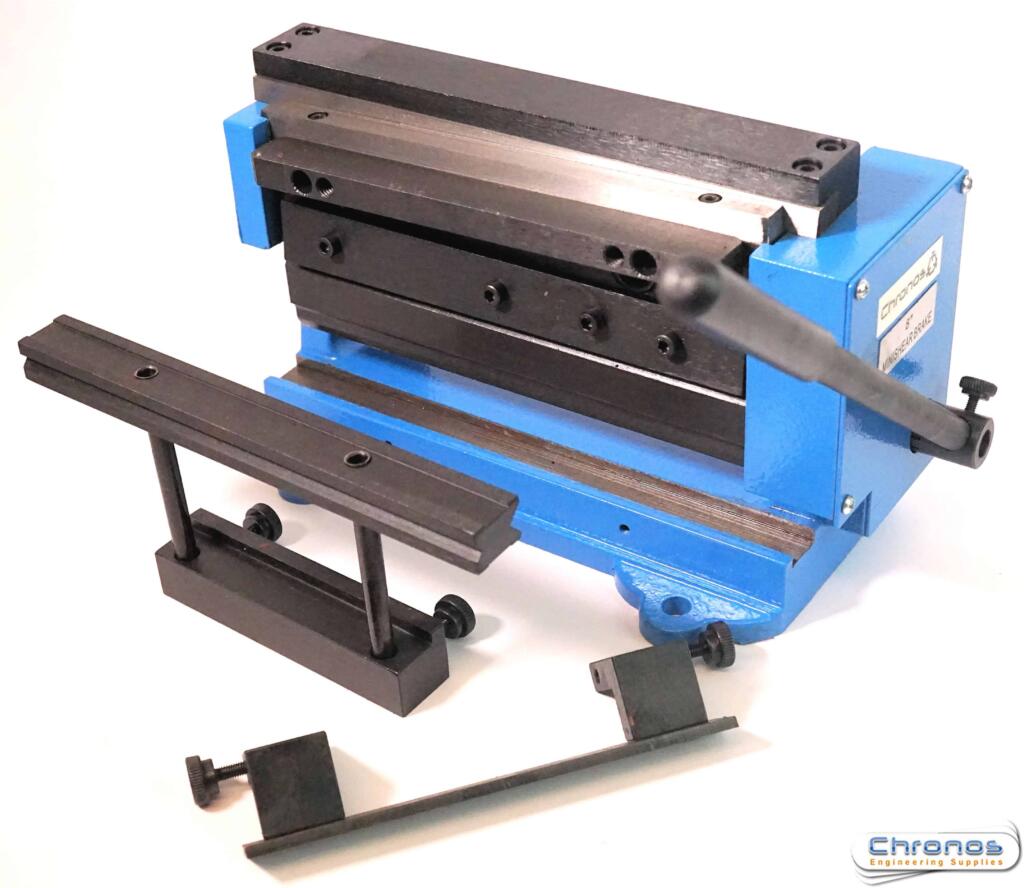

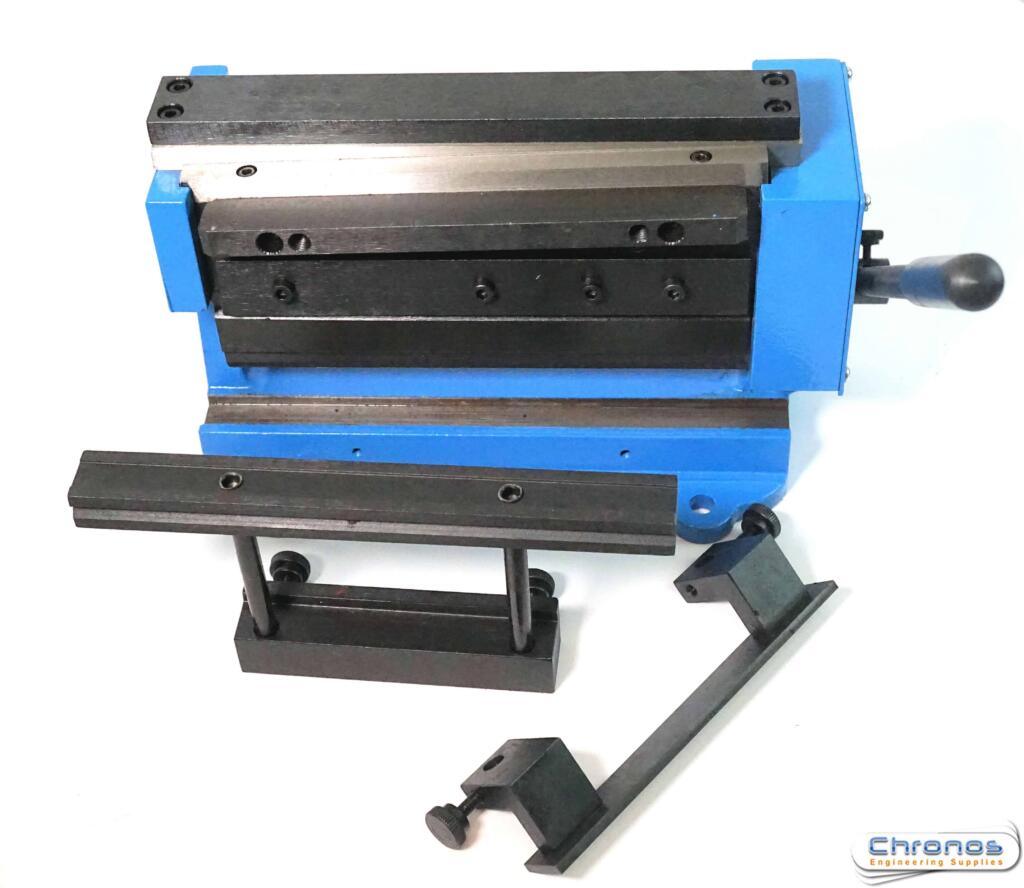

This combination shear and bending brake is ideal for precision sheet metal and circuit board fabrication. The upper section is equipped with a sharp 190mm wide shear that smoothly cuts the material. The lower section is a powerful bending brake that bends sheet metal up to 90 deg and 190mm wide.
SPECIFICATION
Max Cutting & Bending Length – 7 7/8″
Blade length 8″
CAPACITIES
Aluminium , Copper , Tinplate , Brass – 1mm
Circuit Board – 1.5mm
Footprint Size – 9″ x 5″

INSTRUCTION MANUAL
