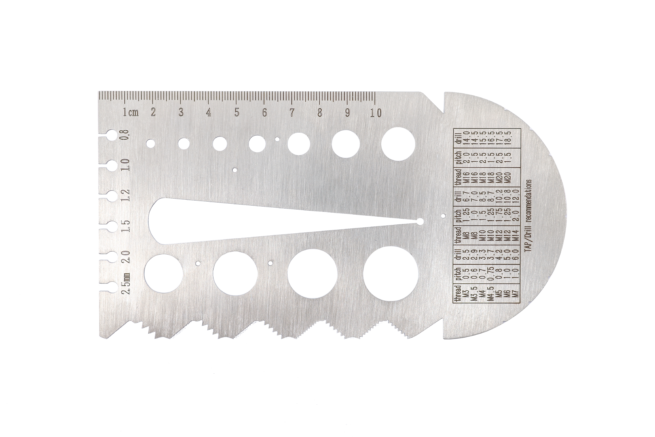

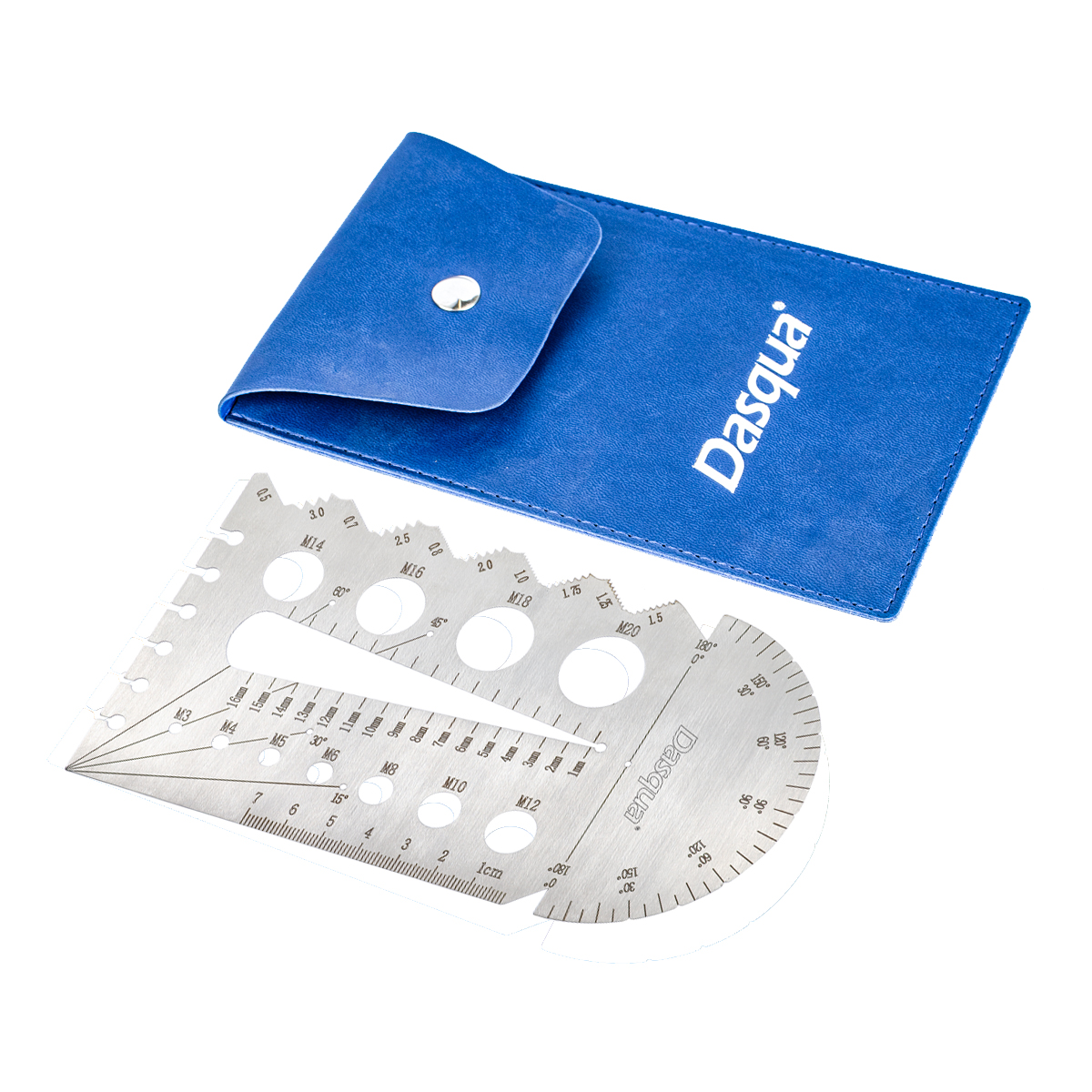

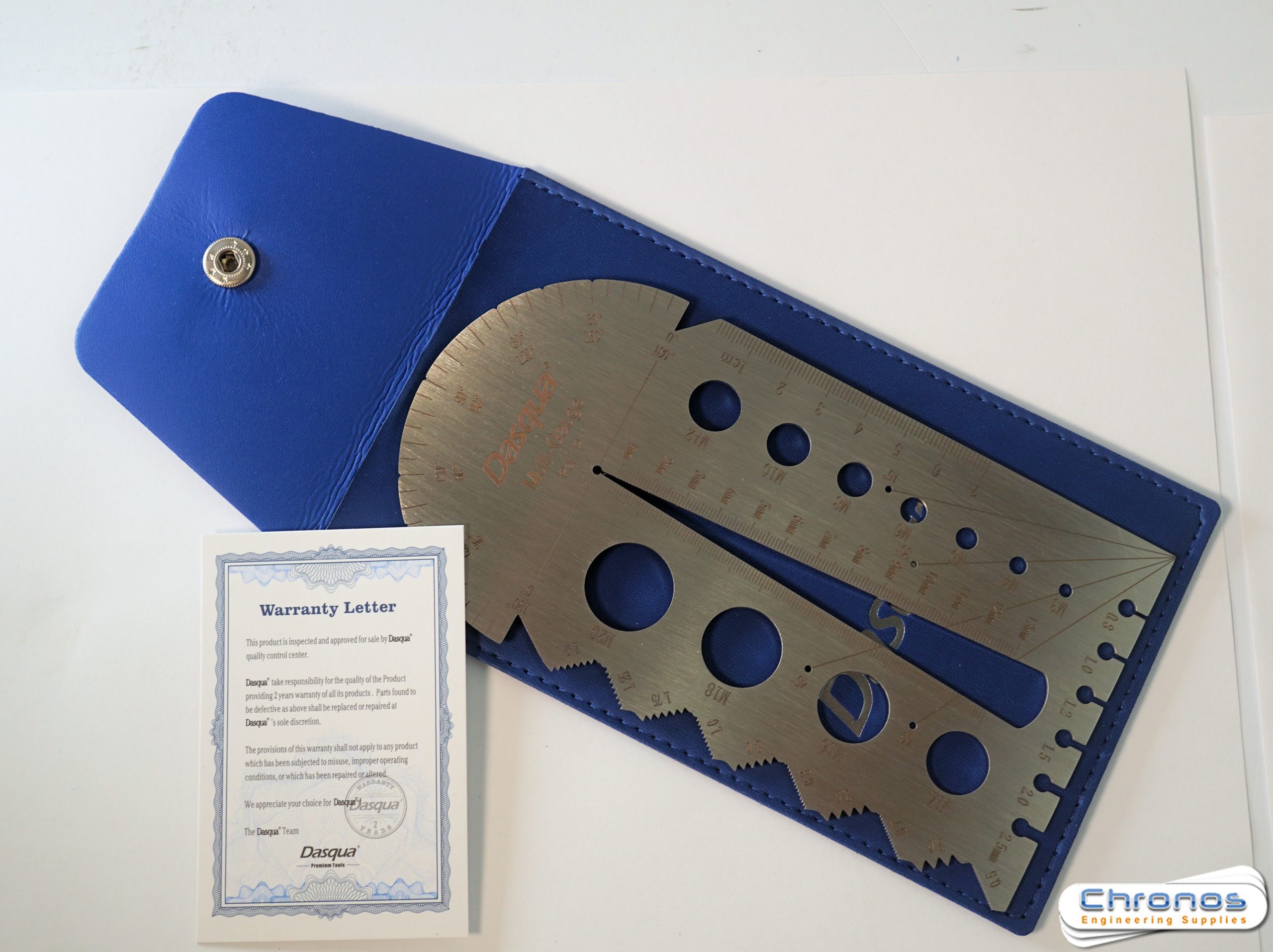

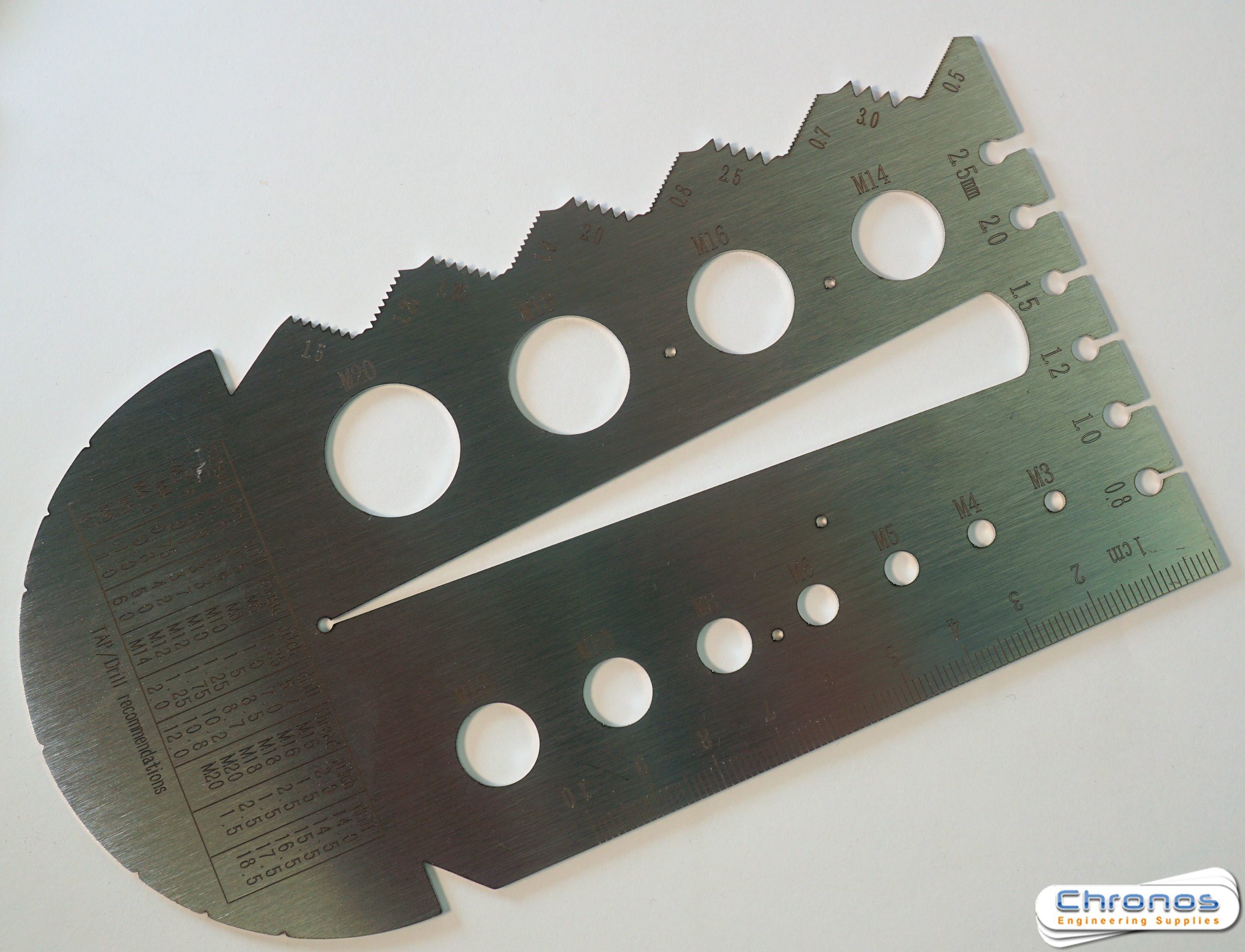

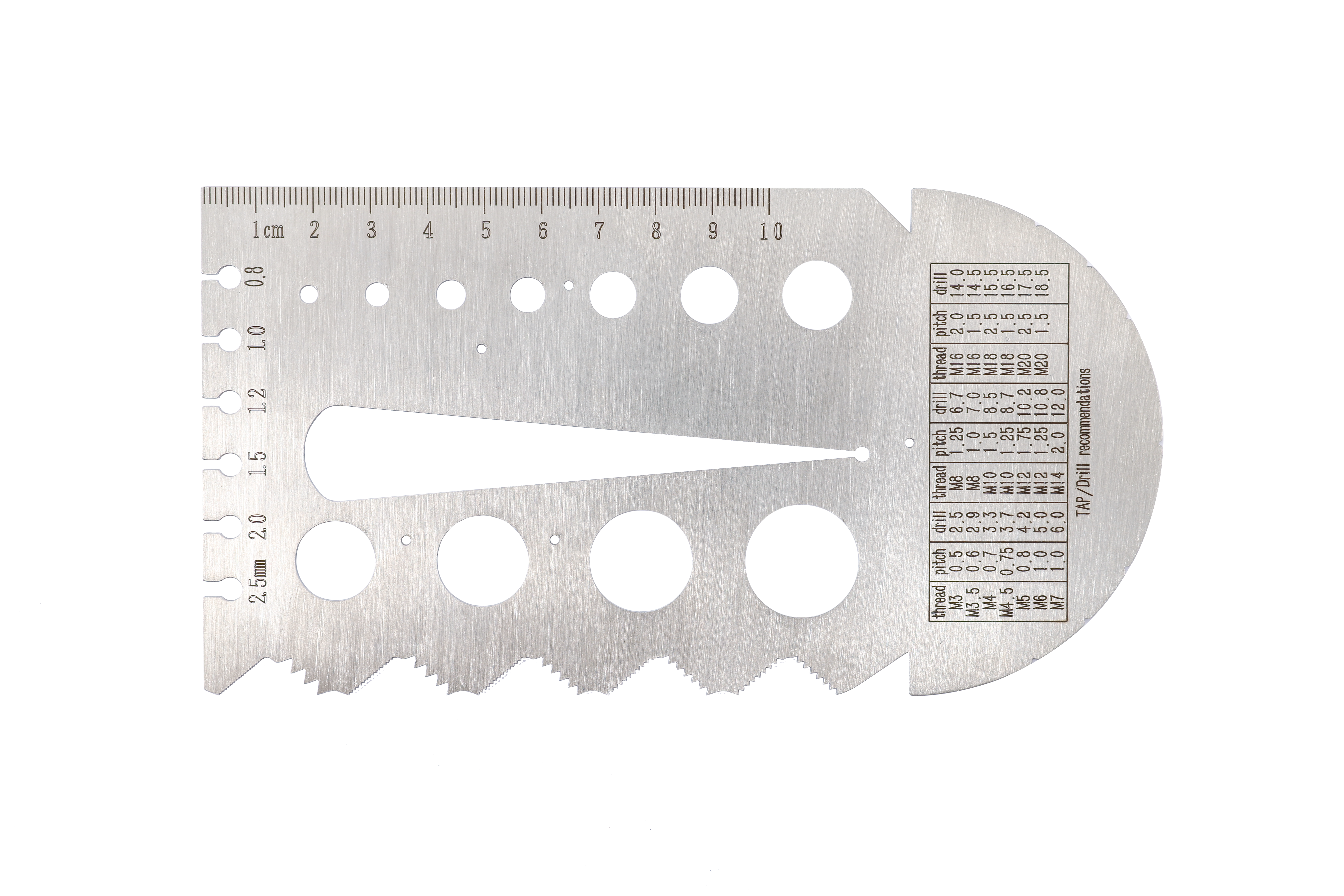

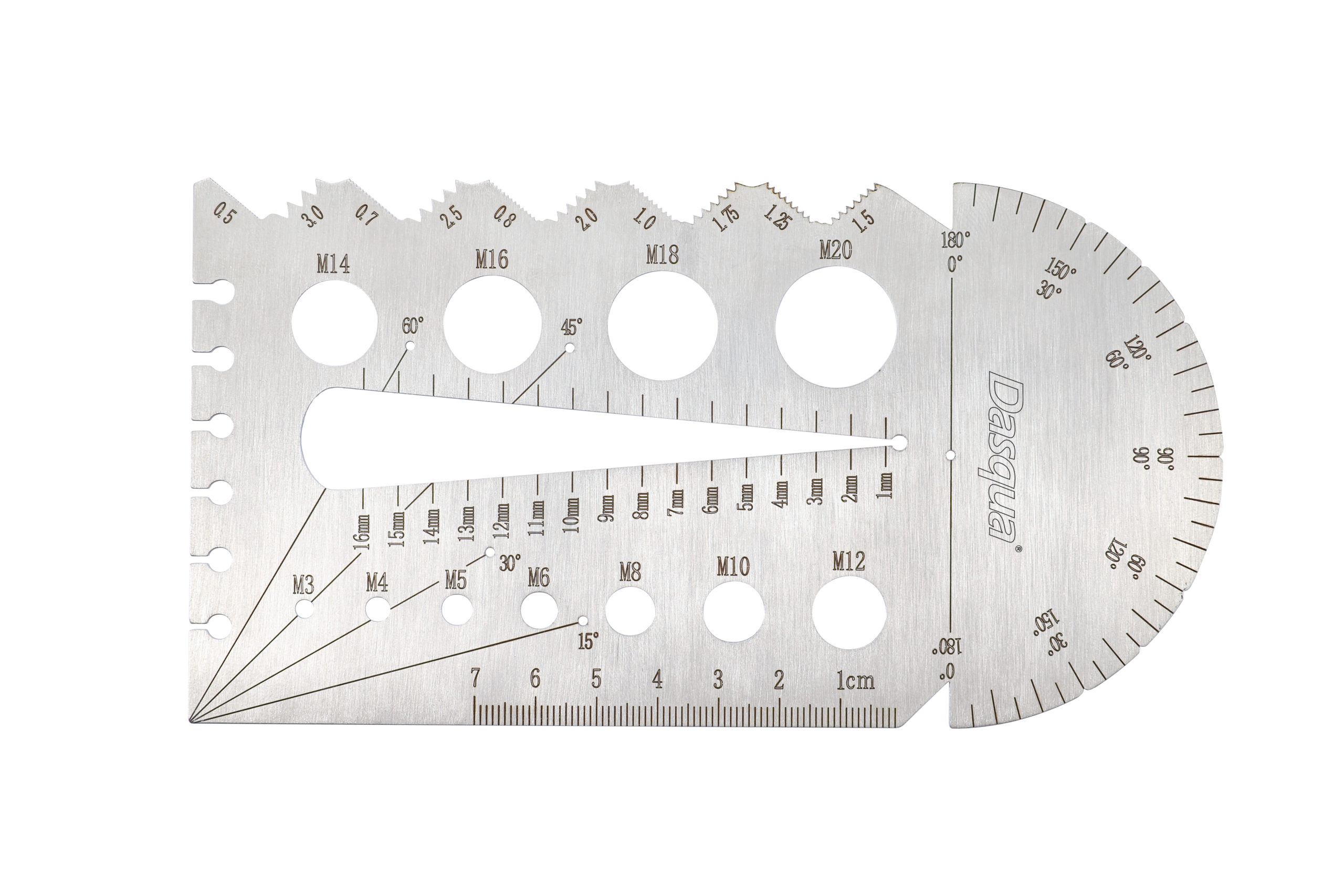

Dasqua Stainless Steel Multi-function Gauge 8511-0055

Features:

Made of stainless steel, polished
Multi-function thread pitch identify
Quick to use, very accurate and convenient sizes

Applications

You can use this gauge to identify the size of  a bolt, determine taps before tapping and for checking thickness of washers and diameters of electric wire, marking line, measuring angle etc.

Specification

Size – 90 mm x 170 mm

Material – Stainless Steel

Thickness – 1.25 mm

Pitches – 3.0 , 2.5 , 2.0 , 1.75 , 1.5 , 1.25 , 1.0 , 0.8 , 0.7 , 0.5 mm

Hole Diameters for Bolts – M3 , M4 , M5 , M6 , M10 , M12 , M14 , M16 . M18 , M20

Slots for wire and washer – 0.8 , 1.0 , 1.2 , 1.5 , 2.0 , 2.5 mm
