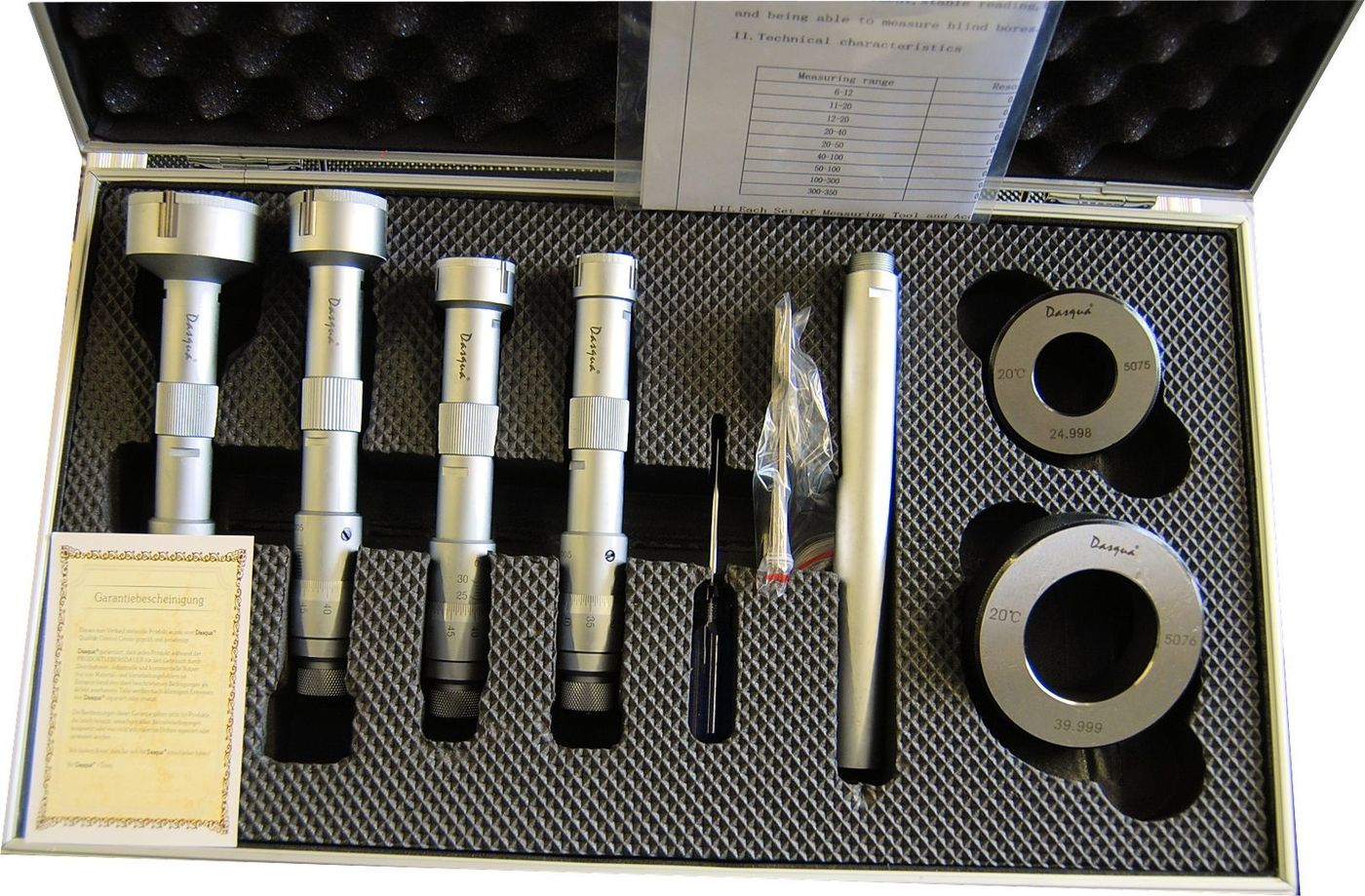

Dasqua Three Points inside Micrometer Set 20-50mm/20-25, 25-30, 30-40, 40-50mm 4411-3215

DASQUA PRECISION WORKSHOP TOOLS – GUARANTEED FOR LIFE

• Strictly made in accordance with DIN863
• Carbide measuring face
• Satin chrome-plated scales and operating parts
• Self-aligning and self-centering
• Ratchet stop provides uniform measuring pressure and assures highest reading accuracy
• No-removable anvils.
• Supplied with extension and adjust setting ring(optional)
• With setting ring gage.
Measuring range/Single Range 20-50mm/20-25,25-30,30-40,40-50mm
Graduation 0.005mm Ring gage 25,40mm Extension 150mm

Applied for measuring through-holes and blind-holes

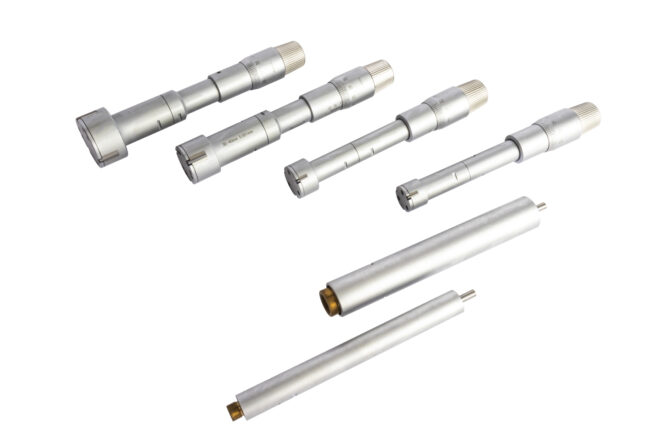

With extension rods which are available in deeper holes
With Ratchet stop for constant force
Highly durable because of carbide-tipped measuring surfaces
Setting rings for zero point adjustment
Clear graduations laser-etched on satin chrome finish for easy reading
Spindle hardened, ground and lapped for ultimate accuracy
