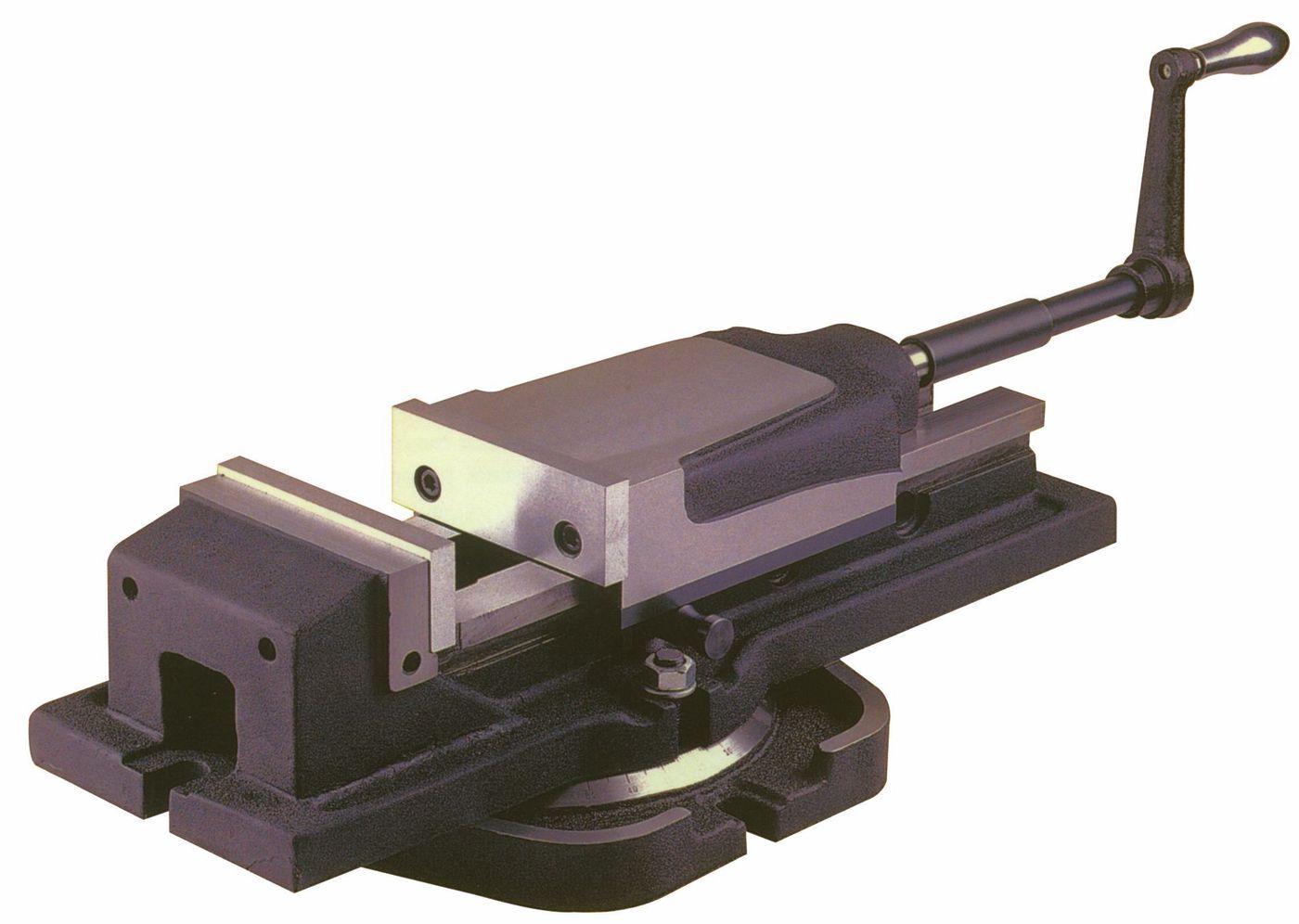

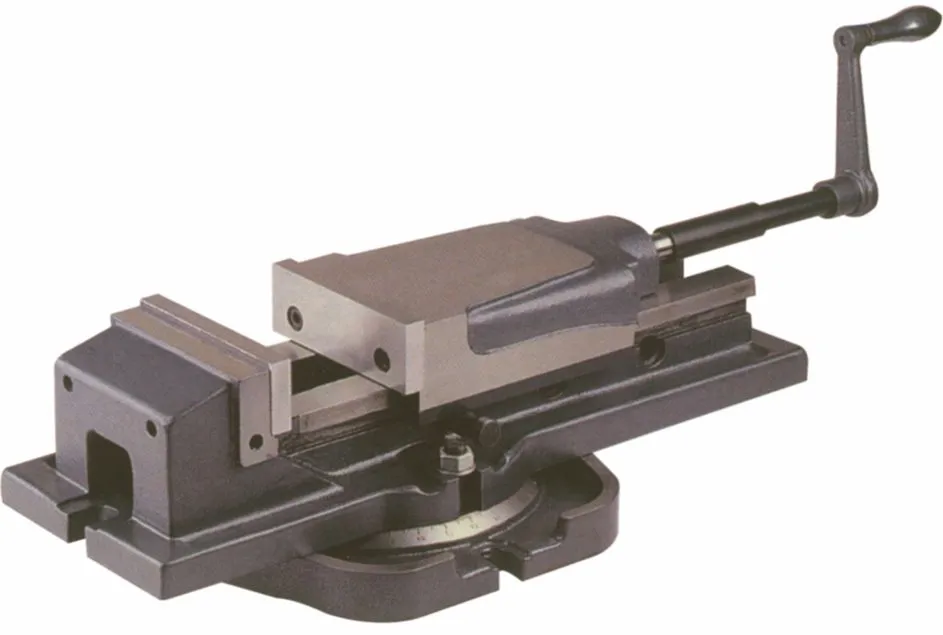

Hydraulic Power Machine Vice 100mm

Hydraulic machine vice with swivel base
100 MM JAW WIDTH MODEL 220-002

Features:

· Solid structure for milling, drilling and grinding
· Vice body made of high quality casting which resists deflection or bending
· Hardened and ground guide surfaces
· Hardened and ground clamping jaws,
· Booster system, little effort, high pressing power when clamping
· Protected spindle which magnifies a small force into an enormous clamping force
· Large clamping range due to locking bolts with different hole spacings
· With swivel base, 360° turnable

JAW WIDTH – 100 MM

JAW DEPTH – 36 MM

JAW OPENING – 170 MM

3 STEPS CLAMPING POSITION – 0-60 MM , 57-115 MM , 110-170 MM

WEIGHT 22KG

HEIGHT 94MM

LENGTH – 430 MM (WITHOUT HANDLE)
