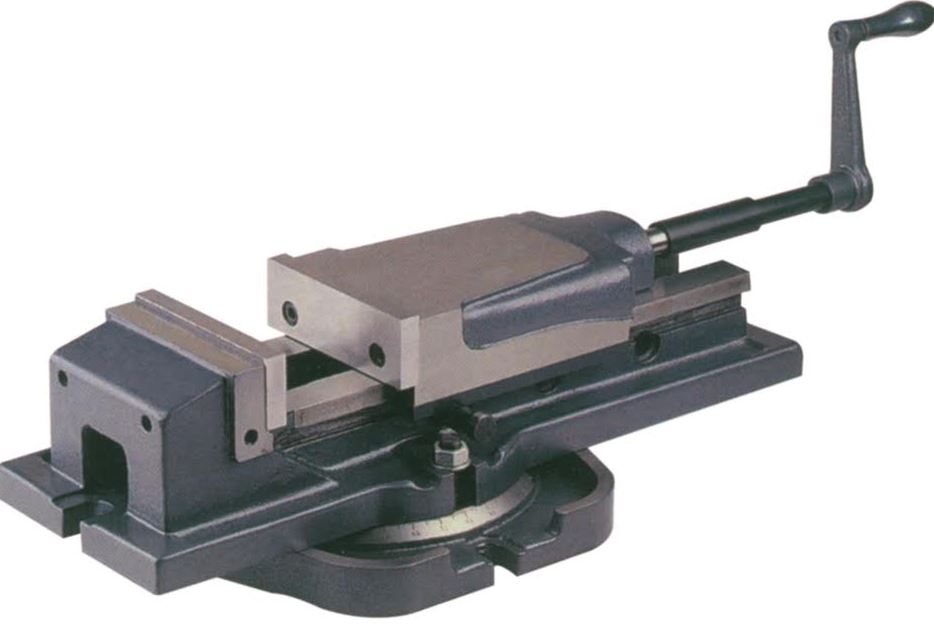

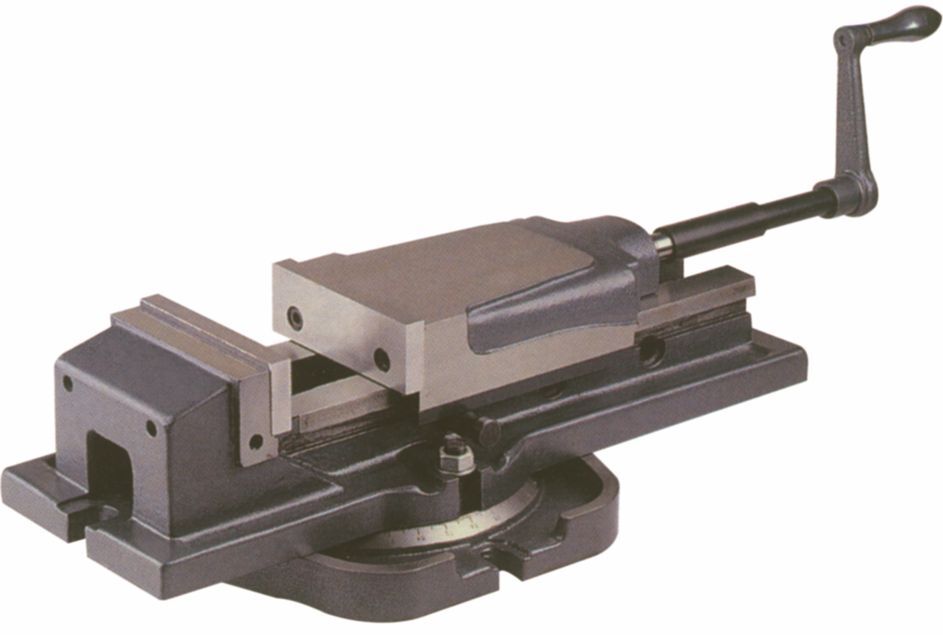

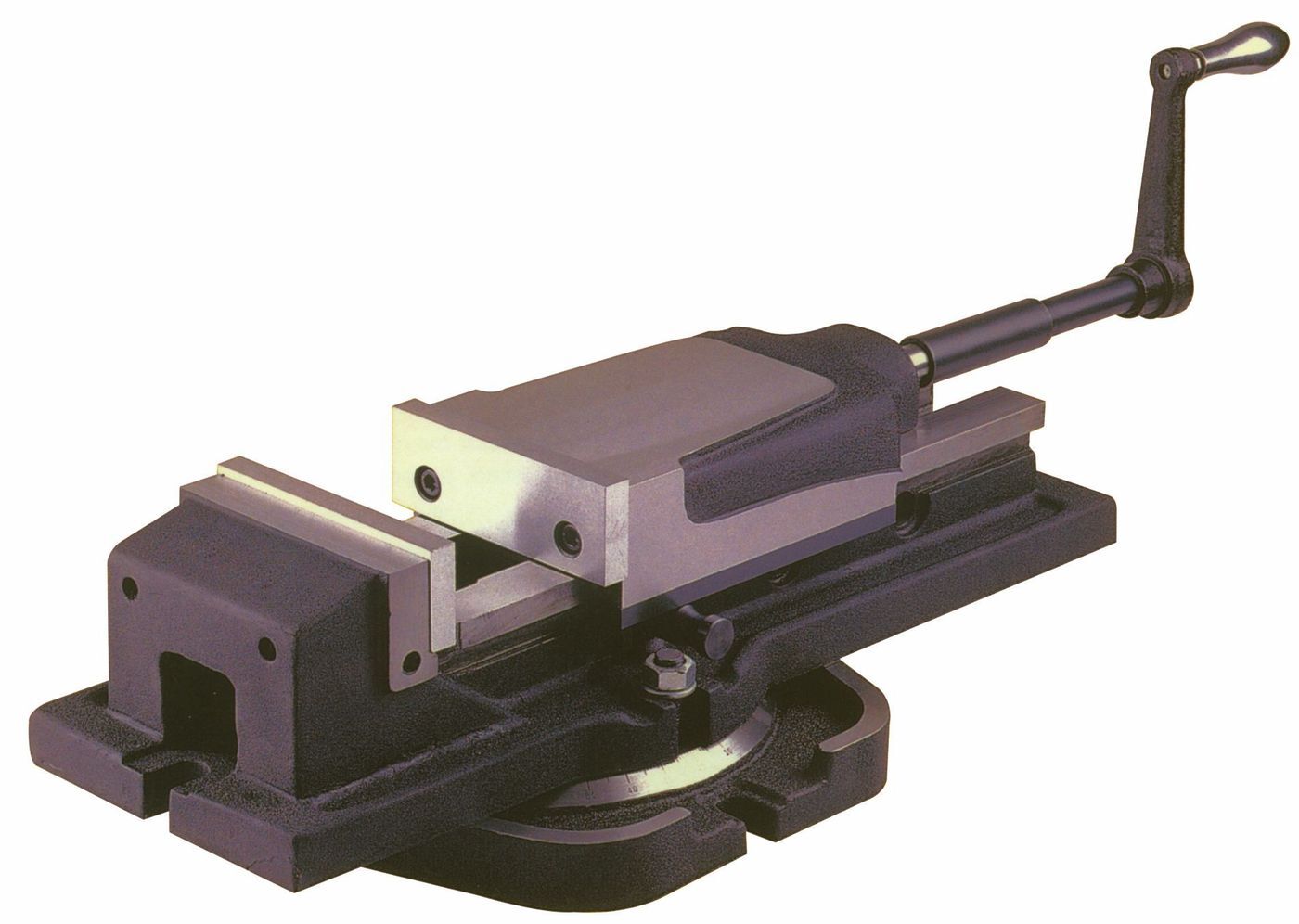

Hydraulic machine vice with swivel base
200 MM JAW WIDTH MODEL 220-004

Features:

· Solid structure for milling, drilling and grinding
· Vice body made of high quality casting which resists deflection or bending
· Hardened and ground guide surfaces
· Hardened and ground clamping jaws,
· Booster system, little effort, high pressing power when clamping
· Protected spindle which magnifies a small force into an enormous clamping force
· Large clamping range due to locking bolts with different hole spacings
· With swivel base, 360° turnable

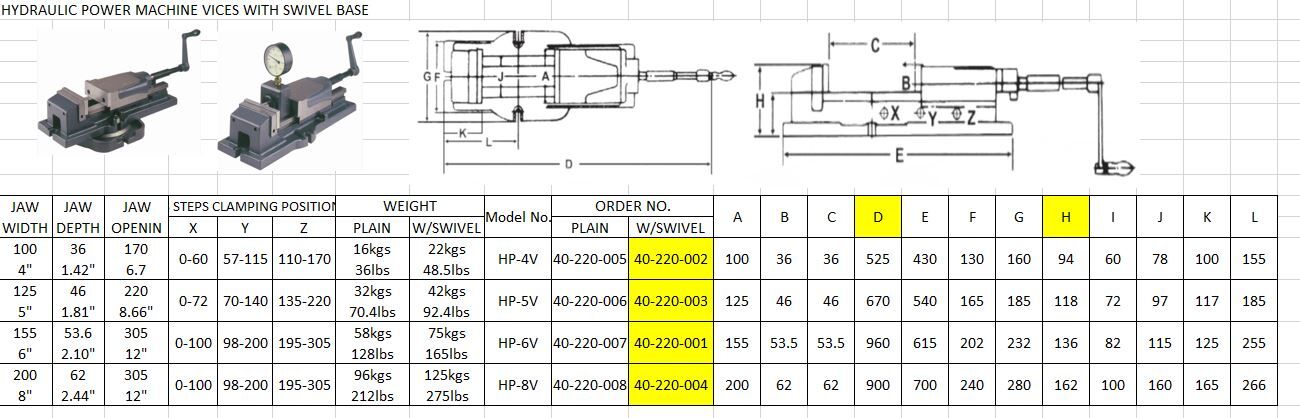

JAW WIDTH – 200 MM

JAW DEPTH – 62 MM

JAW OPENING – 305 MM

3 STEPS CLAMPING POSITION – 0-100 MM , 98-200 MM , 195-130 MM

WEIGHT 125KG

HEIGHT 162MM

LENGTH – 700 MM (WITHOUT HANDLE)





WE CAN ONLY SHIP THIS TO THE UK MAINLAND
