Soba 2MT Tailstock Die Holder and Tap Holder Set
£42.50.

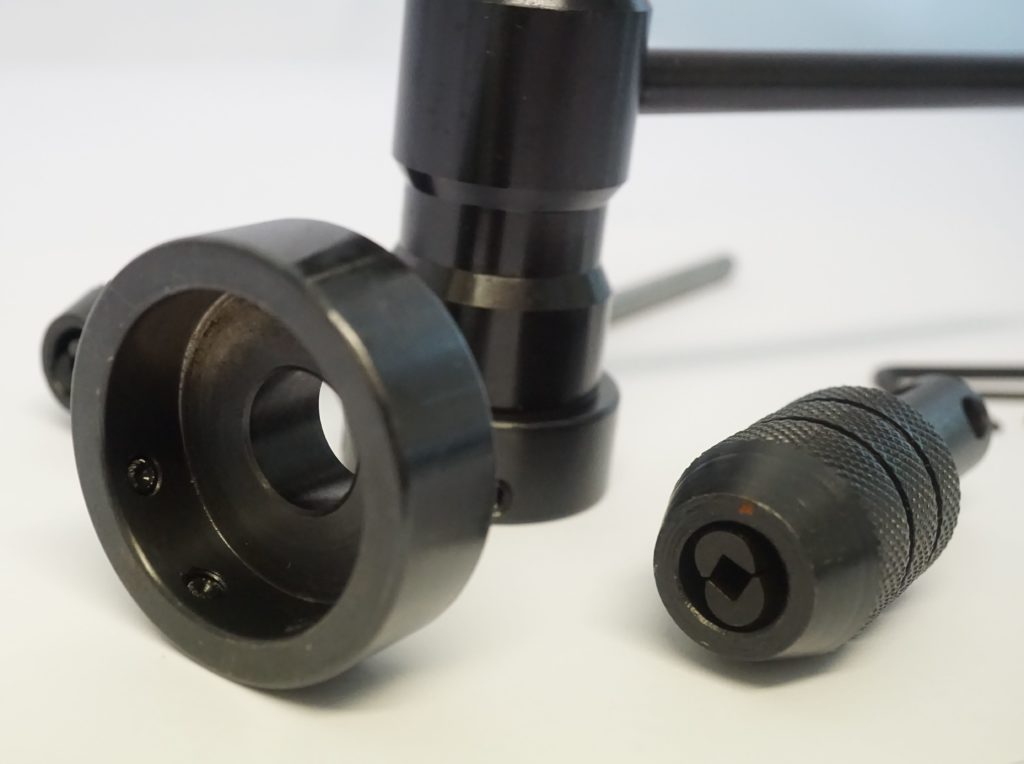

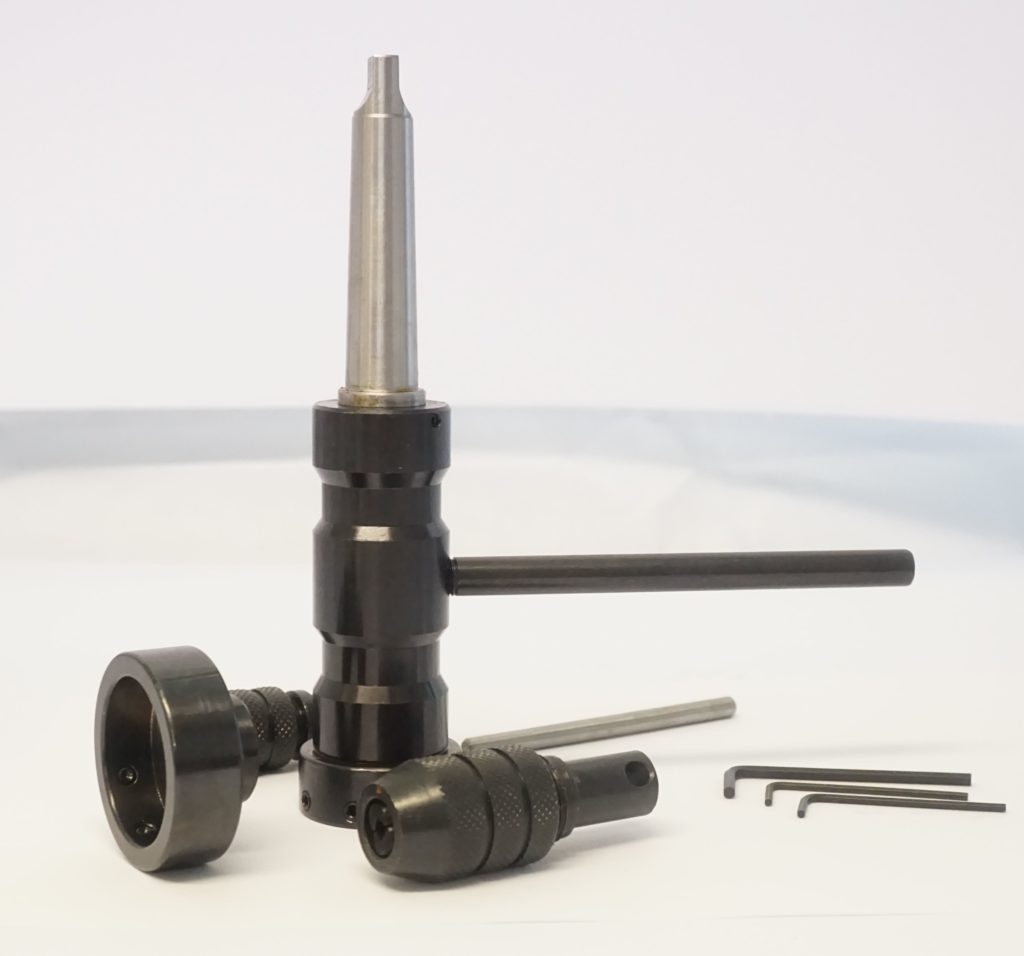

2MT Tailstock Die Holder & Tap Holder set
The unique design of the two piece head of this unit allows the die centre line to be set on that of the lathe spindle. This compensates for out of alignment caused by collapsing of the die to adjust the thread diameter and any other misalignment in the
set up.
Holds 13/16”, 1”, 1 5/16” & 1 1/2” diameter dies.

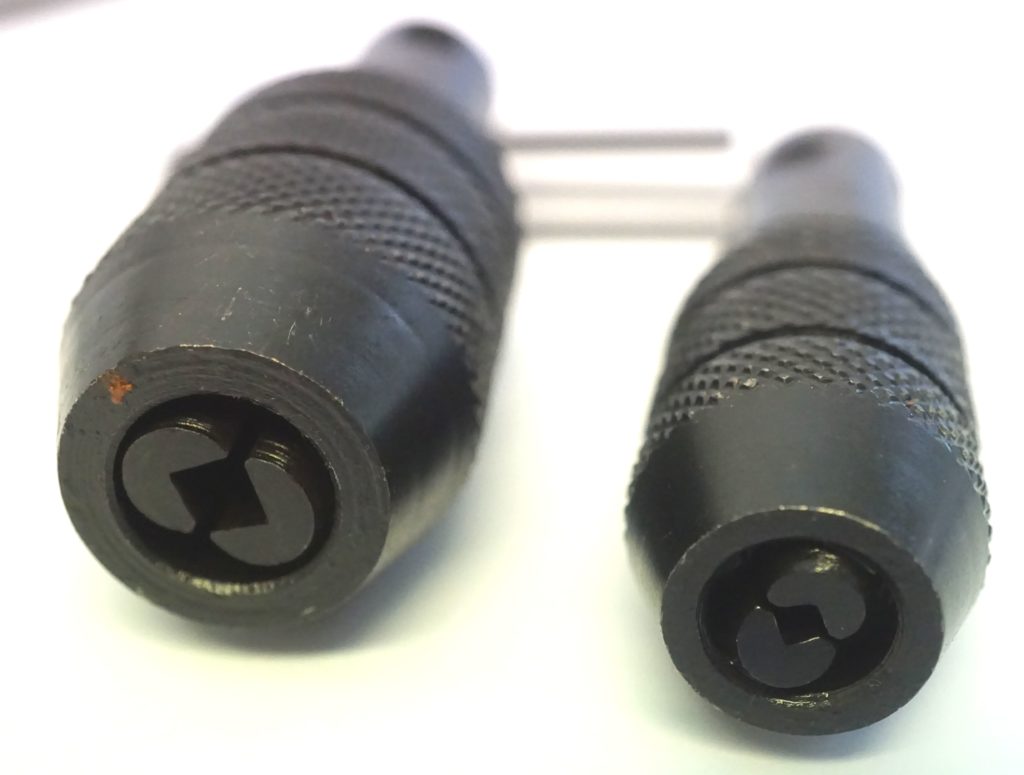

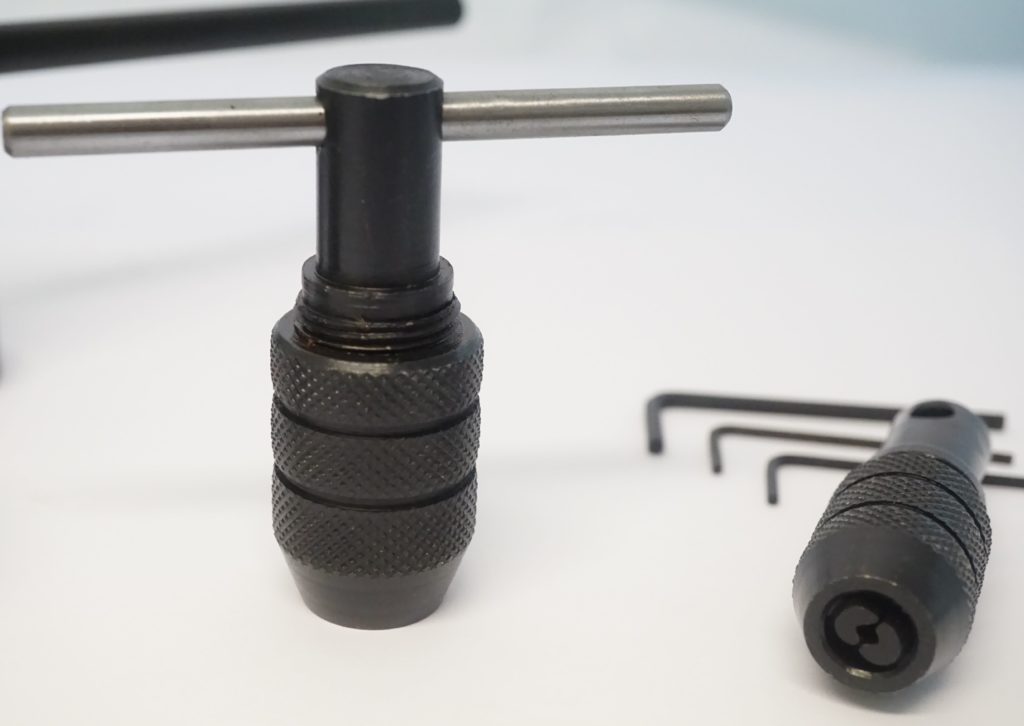

The Tap Holder ys included to allows tapping on the same principle as above . Also included are extra Tommy bars etc so that you can use the tap holder as a conventional Hand Tap wrench as well as a machine one
Specification
DIE HOLDER BODY
13/16″ – 1″
DIE HOLDER
1.3/16″
DIE HOLDER
1.1/2″
MT-2 SHANK TANG
MT-2 X 5/8″
TAP HOLDER ( 5/8″ ST. SHANK)
1/16″ – 1/4″
TAP HOLDER ( 5/8″ ST. SHANK)
1/4″ – 1/2″
ST. HANDLE
10X125mm
Availability: In stock
