New 5/16 Sq Shank Clamp Type Parting Tool with 100mm M-35 HSS Chipbreaker Blade

BLADE
2 mm thick x 10 mm wide x 100 mm long. M-35 HSS with 5% Cobalt

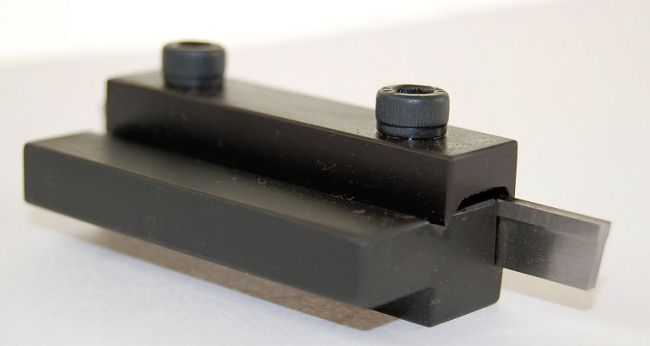

HOLDER
56 MM long x 22 mm high. Shank is 5/16 thick .
This type of parting blade produces a chip narrower than the blade itself and is ideal for parting off, grooving and similar operations. The increased clearance angles on each side of the blade reduces friction and the narrow design conserves material being cut and reduces the heat generated when cutting.

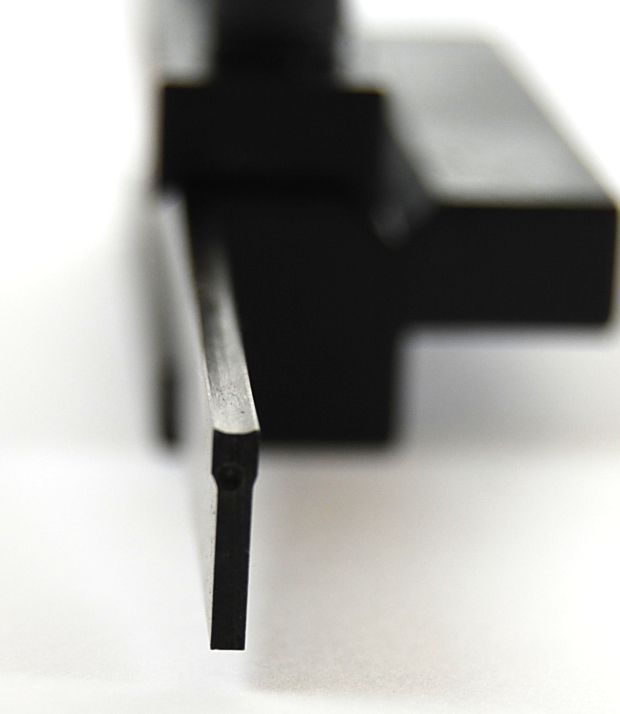

The blades are T-shaped , these thicker blades are great for parting off larger diameters where you need additional rigidity .
They are 5% Cobalt – this gives a much higher heat resistance
