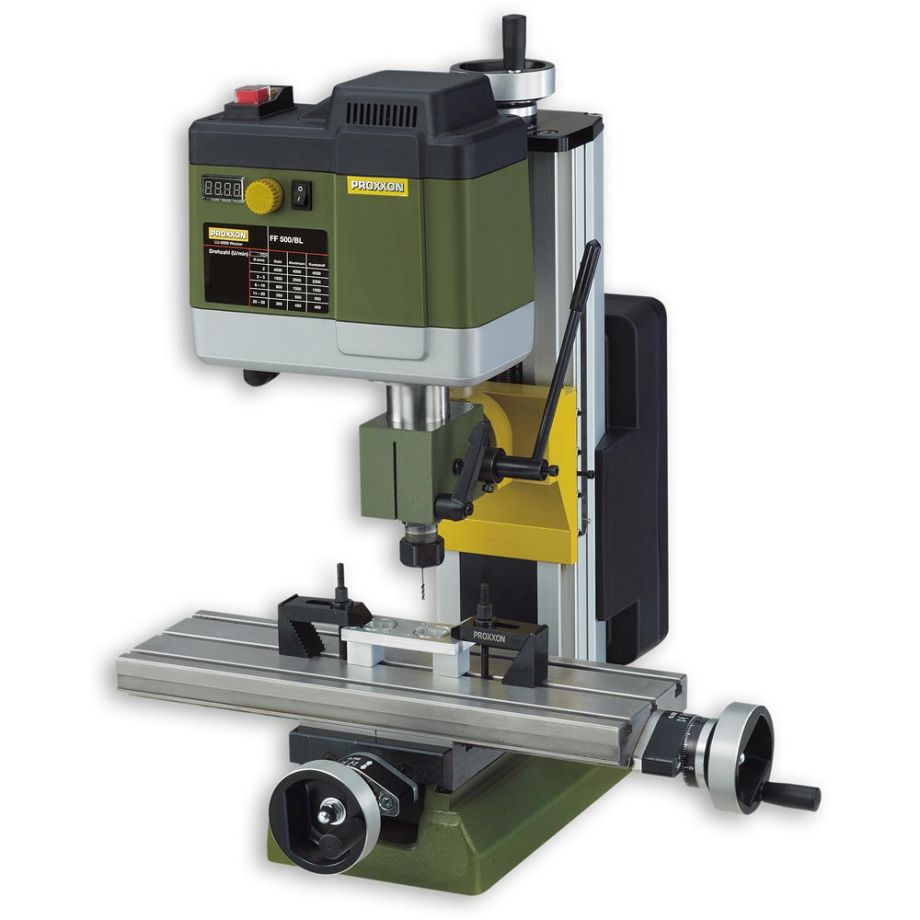

Proxxon FF 500/BL Micro Mill 102371

Proxxon FF 500/BL Micro Mill 102371

£1,865.00.

The FF 500/BL features the latest technology with a brushless direct drive. It is quiet and vibration-free in use with high precision. It boasts a wide speed range, variable from 200 to 4,000rpm, with a clear four-digit display. Electronic speed control and speed sensors guarantee high torque when using large milling cutters at lower speeds. The solid column has dovetail slideways with adjustable jib strips for smooth operation and zero play. The milling head can be angled both left and right by 90° either way. The spindle sleeve is lockable and pre-machined should you wish to fit the optional fine feed. The spindle uses ER20 collets guaranteeing trouble-free tool holding and maximum potential. The FF 500/BL includes four ER20 collets (6, 8, 10 and 12mm). Turning a hand wheel on top of the main column adjusts the head height (Z axis). All three hand wheels (X, Y and Z axes) have adjustable scale rings. One revolution is equal to 2mm, with coarse divisions of 0.1mm and fine divisions of 0.02mm. The solid plane-milled steel compound table features three MICROMOT standard T-slots.

Key Features

  • Quiet, vibration-free brushless direct drive, high torque at low speeds
  • Variable speed 200rpm to 4,000rpm for wide range of applications
  • Solid plane-milled table in steel (400 x 125mm) with three T-slots
  • X, Y and Z axes hand wheels with coarse and fine divisions
  • Very accurate European made machine
  • Supplied with 4 x ER20 collets (6, 8, 10 and 12mm)
    Diameter of Column 120 mm x 100 mm
    Head Tilt 90° – 0° – 90°
    Lateral Table Movement 100 mm
    Longitudinal Table Movement 310 mm
    Nett Weight 47 kg
    Nose of Spindle to Table [Max] 220 mm
    Overall L x W x H 750 mm x 550 mm x 550 mm
    Power 400 W
    Rating Industrial
    Spindle Speed 200 – 4,000 rpm
    Spindle Travel 30 mm
    Table Size 400 mm x 125 mm
    Throat 125 mm
    Voltage 230 V

Availability: In stock

Price includes delivery to the UK mainland on orders over £50 plus VAT (excl Scottish Highlands). You can add this product to the shopping basket and pay with a credit/debit card, or with PayPal.
