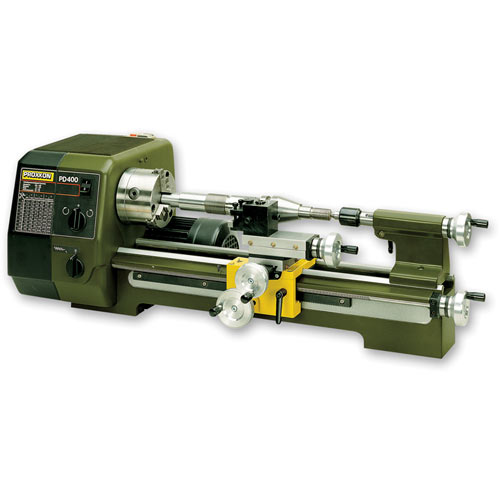

Proxxon PD 400 Precision Lathe 474027

Supplied with change gears for thread cutting in 19 steps (0,2 – 3,0mm)
Main switch with emergency stop function and restart protection.
Quality, precision 3 jaw chuck with 100mm capacity.
Powerful capacitor motor with 550W output.
Quick-Change tool post with 2 holders (fitted with adjustable height and stop).
Includes 2MT rotating centre in tailstock
Easy to use hand wheel of aluminium with adjustable scale of steel. 1 division = 0.05mm
Fully enclosed leadscrew with Acme thread (12 x 1.5)
Cross-braced cast iron bed with wide, ground slide ways
Handwheel for quick support change
Switch for clockwise, off and counter-clockwise rotation
Selector for auto feed
Offers precision and versatility. Complete with 3 jaw chuck, live centre and thread cutting capability.The PD 400 lathe is unequalled in its class. Ideal for straight and cross cuts, taper turning, internal and external thread cutting slotting etc. Usable on materials such as steel, non-ferrous metals (aluminium, brass etc.). Negligible variances even under heavy loads. Ground and hardened beds of ribbed construction for highest precision and stability. The wide range of accessories complements the lathe’s functions. The bed is equipped with a milled surface for securing mill/drill head PF 400.Technical Data:Centre distance 400mm, centre height 85mm. The swing over the top slide is 116mm. Solid, ribbed bed is made of quality cast iron with ground and hardened slideways. Oversized spindle with 2 adjustable taper bearings, 3MT taper and 20.5mm bore. Run-out, without chuck, 0.005mm.The precision 3 jaw chuck has a capacity of up to 100mm. Six spindle speeds are provided via belt drive: Level 1: 80 / 330 / 1,400rpm; Level 2: 160 / 660 / 2,800rpm. Powerful, quiet capacitor motor with 550W output. All adjusting wheels fitted with scales that may be zeroed. 1 division = 0.05mm. The auto feed has speed of 0.07 or 0.14mm/rev. An integrated gearbox with change gears provides 19 pitches: 0.2 – 0.25 – 0.3 – 0.35 – 0.4 – 0.45 – 0.5 – 0.6 – 0.7 – 0.75 – 0.8 – 0.9 – 1.0 – 1.25 – 1.50 – 1.75 – 2.0 – 2.5 – 3.0mm. Imperial threads of 10 – 48 TPI are also possible. A rotating centre 2MT and 10mm 2MT gear chuck are included. Cross slide travel 85mm and topslide 55mm. Swivels through 45° for taper turning. Tailstock with 2MT (short), spindle travel 40mm and a diameter of 24mm. Supplied with scale. Approx. size 900 x 400 x 300mm. Weight approx. 45kg. For cutters of 10 x 10mm.
Specification for Proxxon PD 400 Precision Lathe:
Centre Height: 85mm
Cross Slide Travel: 85mm
Distance Between Centres: 400mm
Height Over Cross Slide: 58mm
Model: PD 400
Nett Weight 45kg
Overall: L x W x H 900 x 400 x 300mm
Power: 550W
Spindle Bore: 20.5mm
Spindle Speed: (6) 80 – 2,800rpm
Taper Headstock: 3MT
Taper Tailstock 2MT
Thread Pitch Range: 0.2 – 3.0mm (10 – 48tpi)
Top Slide Travel: 55mm
