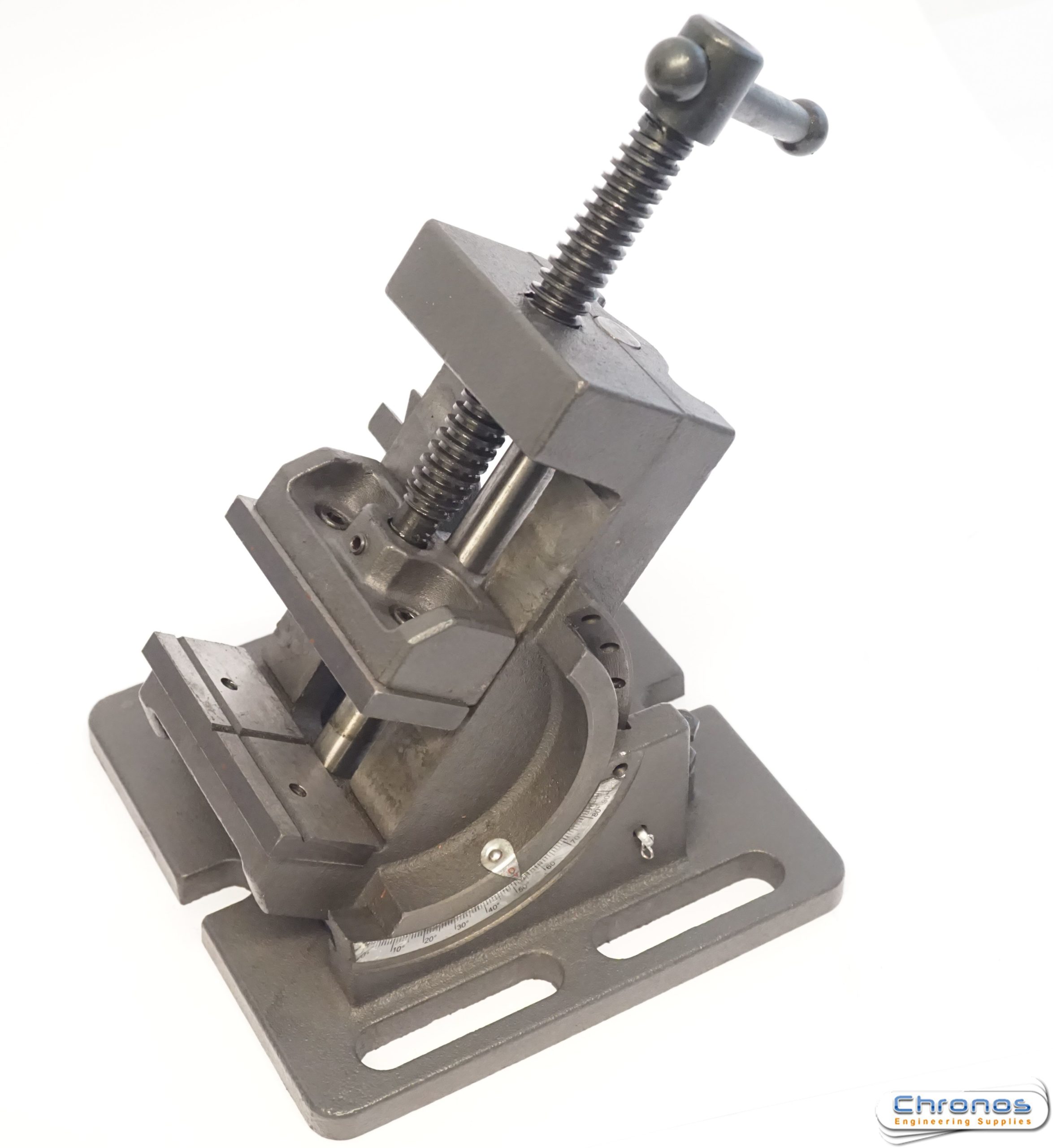

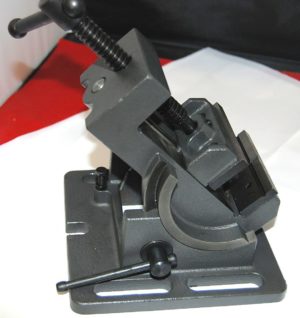

SCT 3 inch/75mm Tilting Drill Press Vice

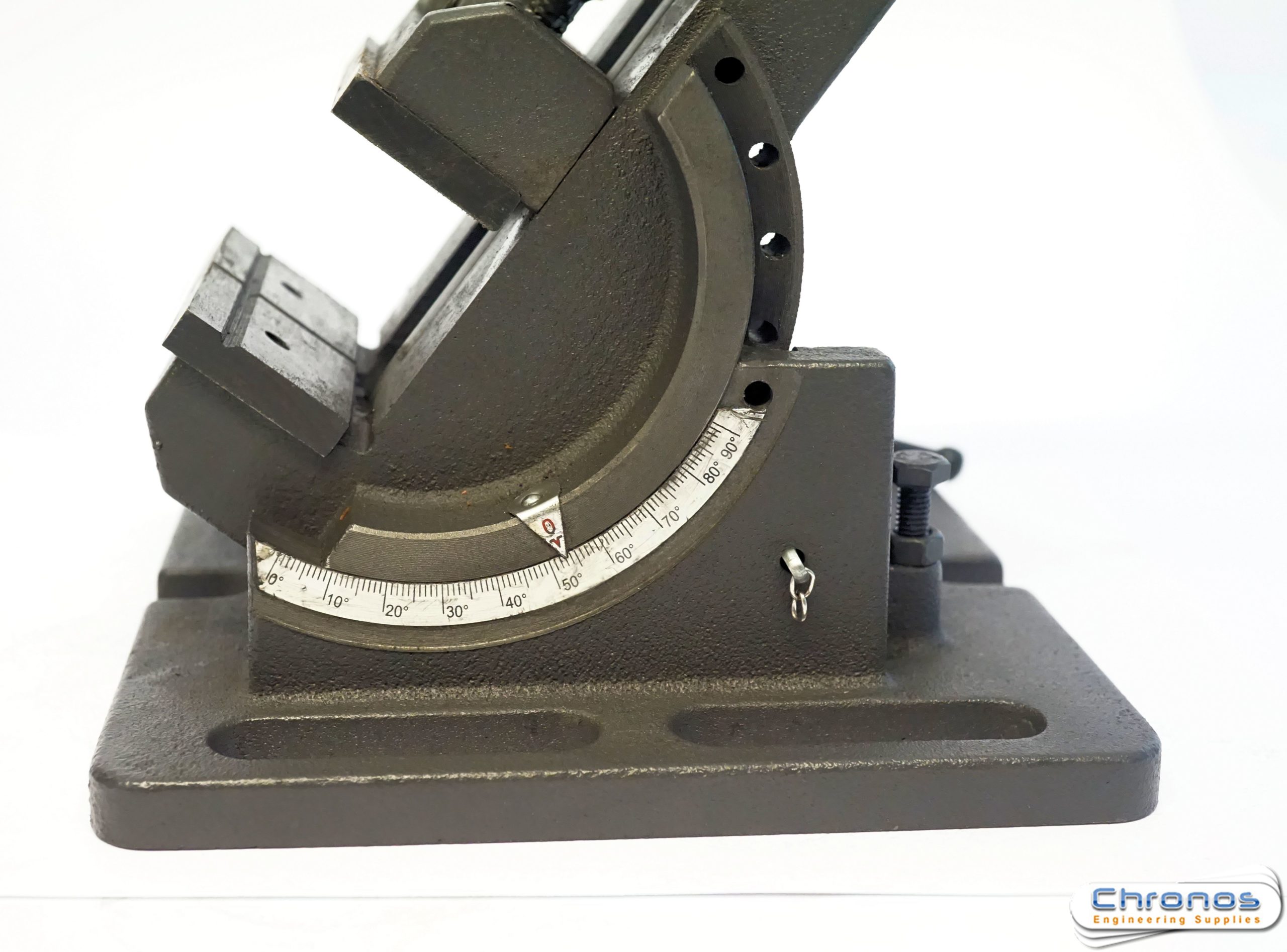

QK-D series tilting vices can be tilted to any position from 0~90 °
Use in your drilling machine for machining inclinable surfaces
Made by high quality Solid cast-iron
Base facilitates an endless combination of mounting options
Perfect for those difficult drill press applications

JAW WIDTH 3″(75mm)

JAW DEPTH 1-3/8″(35mm)

JAW OPENING 3″(76mm)

BASE- 160 MM X 160 MM
HEIGHT WHEN NOT TILTED – 110 MM
4 MOUNTING SLOTS EITHER SIDE – 135 MM CENTRE TO CENTRE
2 ACROSS THE OTHER SIDE 150 MM CENTRE TO CENTRE
V JAW FOR ROUND MATERIAL
WEIGHT 5.5 KG
