Soba 8 inch 200mm Rotary Table Set With Tailstock Plates and 125mm Chuck

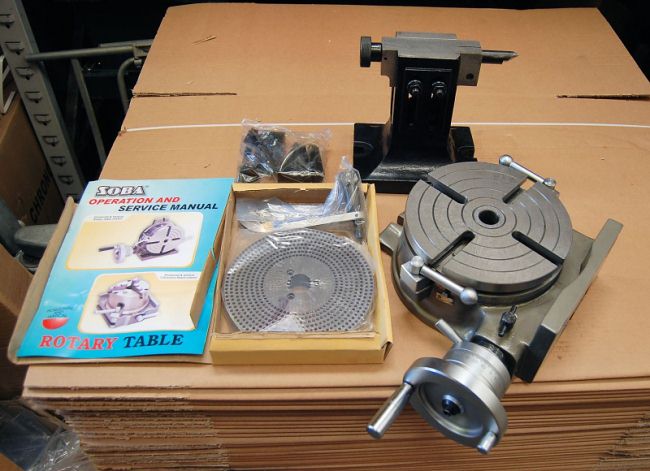

FANTASTIC OFFER- PRICE INCLUDES THE ROTARY TABLE , SET OF 2 DIV PLATES TAILSTOCK, AND A CLAMPING KIT PLUS A 125 MM 4 JAW SELF CENTERING CHUCK
They have a totally ground finish which provides high precision and smooth rotation – The centre of the table is fitted to an inner conical Morse tapered MT3 sleeve.

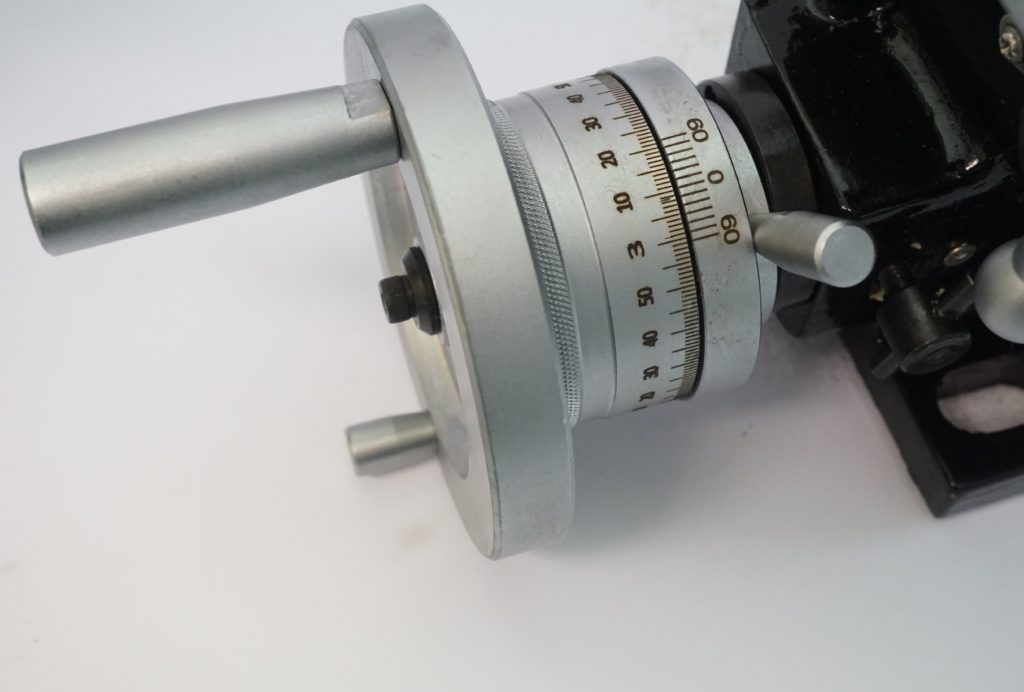

The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing. . Table diameter – 200 mm – Table height – 105 mm – Centre height – 135mm – Centre sleeve – 3MT.4 T slots.
OUR TABLE IS SUPPLIED WITH AN 8 PAGE FULL MANUAL – NOT AVAILABLE FROM OTHER SUPPLIERS!

Click Here for User Manual
