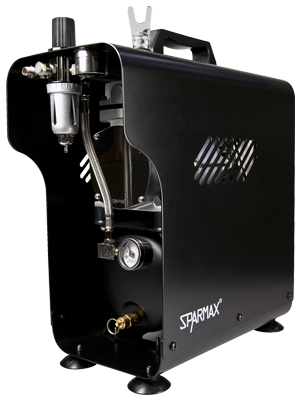

Sparmax TC-620X Professional Twin Piston Airbrush Compressor (2.5 litre)

The Sparmax TC-620X is a powerful automatic twin piston compressor with a 2.5L air tank. It has ample power for any airbrushing task and is suitable for professional airbrush users doing general or extended airbrush applications. With its 2.5L air tank it provides smooth and consistent airflow.

Being automatic, when the TC-620X’s air tank pressure falls below 40psi, the compressor runs to recharge the tank back to 60psi and then switches off – the compressor runs to the demand of the air tank, rather than switching on/off every time the airbrush trigger is pressed.

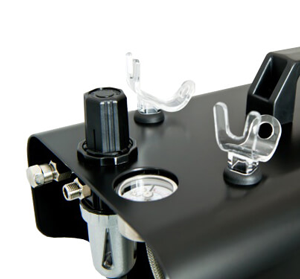

The TC-620X’s is enclosed in a sturdy steel case with carrying handle & is fitted with a mounted adjustable pressure regulator / moisture filter, pressure gauge, twin airbrush holders & air tank mounted pressure gauge. The pressure regulator has 2 x 1/8 BSP outlets (1 x blanking cover included) & is supplied with 2 x 3M braided 1/8 BSP hoses. With the extra air outlet, you can now connect airbrushes beforehand and switch between use of airbrushes. Clean and stable air, controlled for your desired applications.

The Sparmax TC-620X compressor features:

• Low maintenance, oil-less twin piston air compressor
• 2.5 Litre storage tank with mounted pressure gauge
• Working pressure from 0 psi to 60 psi (4.1bar)
• Auto on/off switch: 2.8/4.1 bar (40/60psi)
• Air flow: 23 – 32 lpm (0.81 – 1.13 cfm) at open flow
• 1/6 HP (135 Watt) Motor
• Time to charge 30 Sec. (no load)
• Time to recharge 10 Sec. (no load)
• 2 x 1/8 BSP outlet on compressor
• Mounted pressure regulator, moisture filter & gauge set on case
• 2 x 3M Braided hoses
• 2 x Detachable airbrush holders
• Noise level: 54 decibels
• Size: L33 x W18 x H34.5 cm (13″ x 7″ x 13.58″)
• Weight: 10.4 kgs (23 lbs)
• Voltage: 220-240V 50Hz
• Duty cycle: 60 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.

Suitable for running two of the following airbrushes (or similar) concurrently:

• Sparmax SP35, SP35C, MAX-3, MAX-4, HB-040, SP-20X, DH-125
• Sparmax GP-35, GP-50
• Premi Air G35
• Neo for Iwata
• Iwata Revolution
• Iwata Eclipse (except G3, G5, G6)
• Iwata HP
• Iwata HP-Plus
• Iwata Hi-Line
• Iwata Hi-Line HP-TH (will only run one)
• Iwata Custom Micron
• Iwata Kustom series (or one HP-TH)
• Paasche CC
• Paasche F
• Paasche Talon
• Paasche V
• Paasche VJR
• Paasche VSR90
• Paasche VV
• Badger 100
• Badger 150 (except with HD head)

Suitable for running one of the following airbrushes, small spray guns or similar:

• Sparmax GP-850
• Iwata Revolution BR, CR, SAR, BCR, TR1, TR2, M1, M2
• Iwata Eclipse G3
• Iwata Eclipse G5
• Iwata Eclipse G6
• Iwata Hi-Line HP-TH
• Iwata RG-3
• Iwata LPH-50
• Paasche H
• Paasche HS
• Paasche VL
• Paasche VLS
• Paasche MIL-SET
• Paasche AEC
• Paasche 200T
• Badger 150 HD
• Badger 155
• Badger 175
• Badger 200
• Badger 250
• Badger 260
• Badger 350
• Asturo C3
