Why DBS-22 Drill Bit Sharpening Attachment?

• • Sharpens a four-facet point that drills more efficiently and lasts longer.
  • Sharpens drill bits with outstanding precision.
  • Extends drill bit service life more than four times over compared to traditional S-tip drill bits.

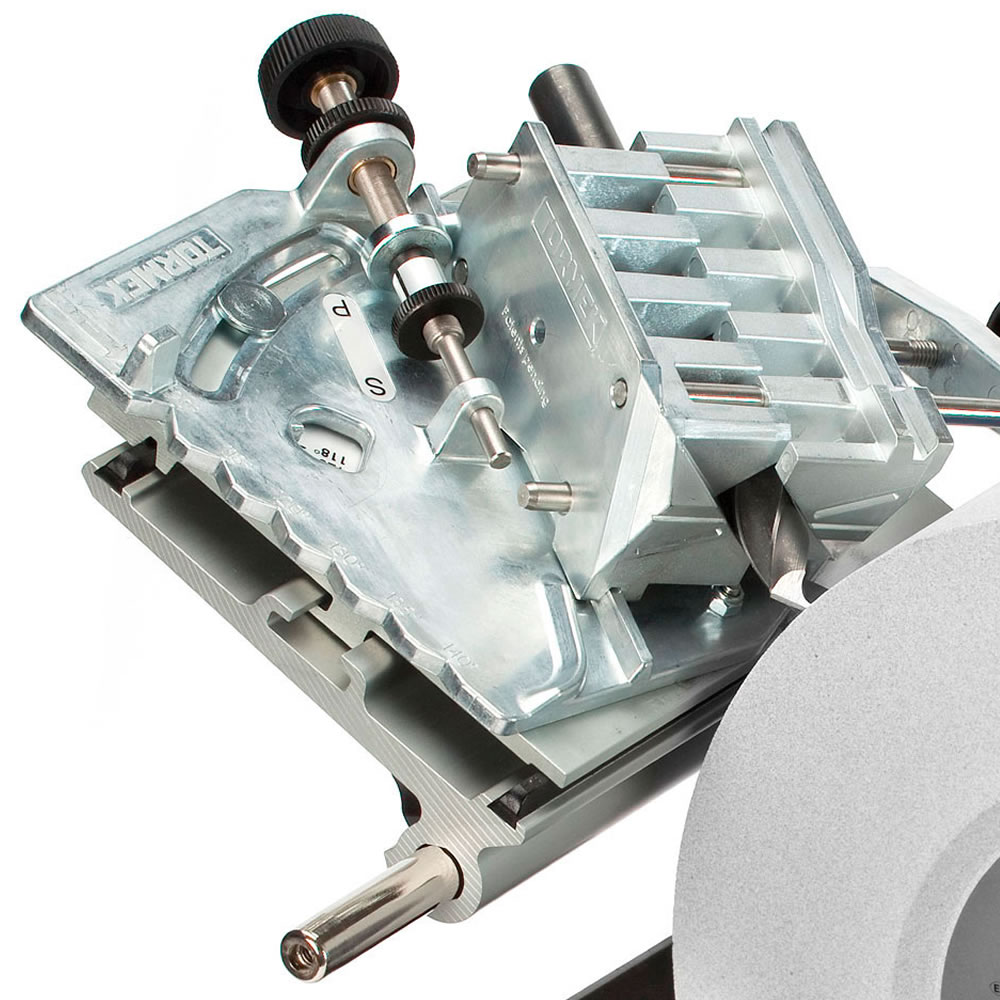

  • Works best with Tormek T-8, as well as older models.

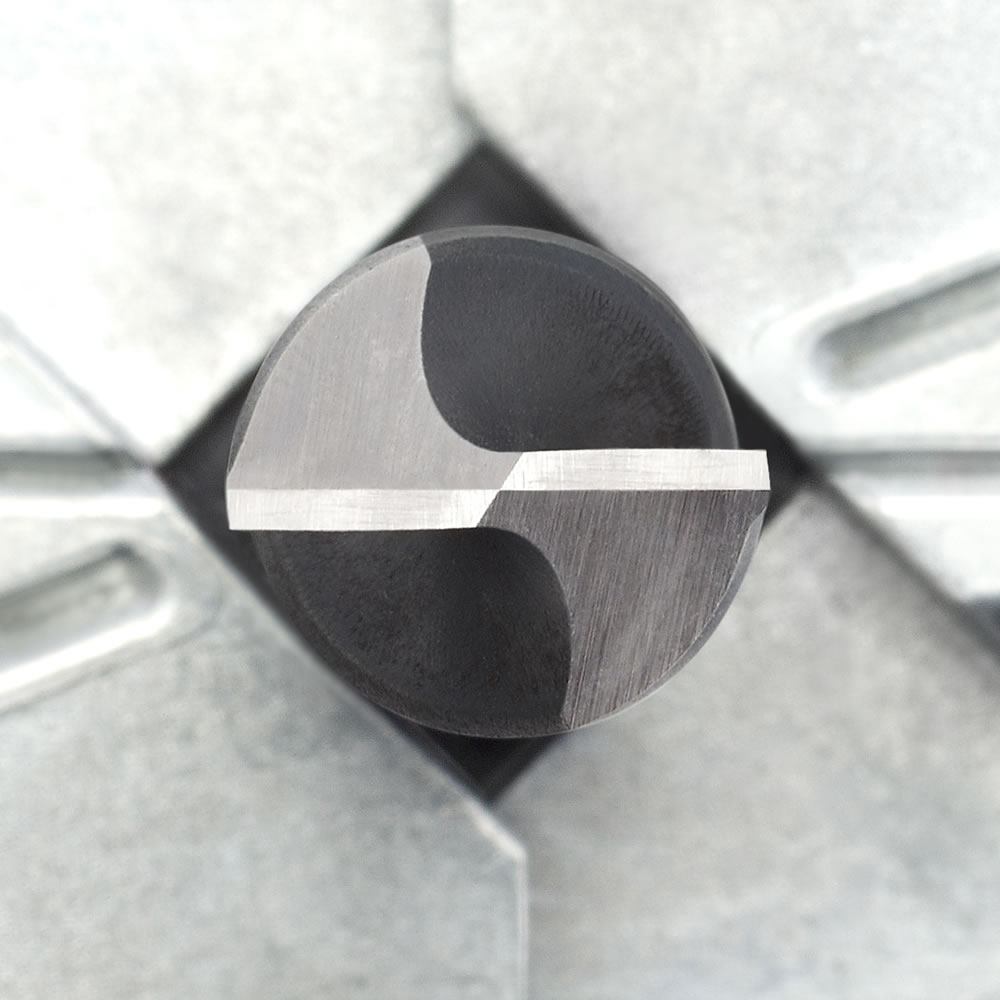

Four-facet point that lasts longer

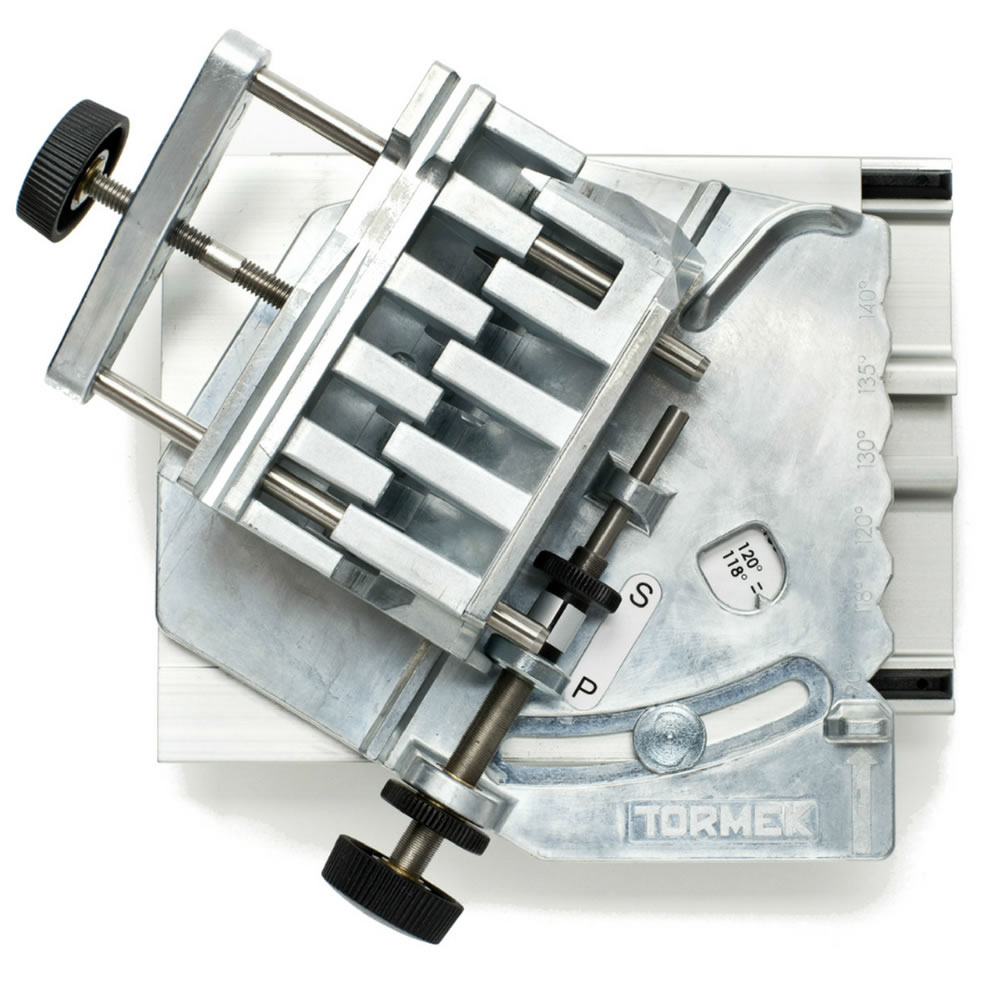

The patented DBS-22 Drill Bit Sharpening Attachment is used to create a four-facet point that provides great cutting characteristics as the cross-cut of the drill bit is pointed instead of being almost flat, as on many other drill bits. A four-facet point won’t wander and requires significantly less drilling pressure compared to a conventional cone point drill.

A precision-sharpened four-facet point also reduces heat build-up, giving a very long service life for the drill bit. Independent tests show that drill bits sharpened using Tormek equipment last more than four times longer than new conventional drill bits¹.

¹ Uddeholm Tooling AB, 2010. In the test, 15 mm (0.59″) deep holes were drilled in a hardened steel using a 6 mm (0.24″) drill bit. At a speed of 1326 rpm and 0.15 mm (0.006″) feed per revolution, the drill bits sharpened using the Tormek equipment lasted for 327 holes on average, while the new S-tip drill bits lasted for 72 holes.

Controlled sharpening
The risk of overheating and microcracking or loss of hardening of the steel is eliminated by working with the natural laws and cooling the edge continuously. You have full control at all times and can see how sharpening is progressing. A magnifying glass is included for smaller drill bits to help you line up the bit in the jig and see the results of your sharpening.

Specs and details

Weight – Shipping weight 3.35 kg (7.39 lb)
Color – Gray/black
Material – Precision-cast zinc, stainless steel, black composite
Warranty – 2-year warranty
Documents – Instructions DBS-22pdf, 43.7 MB.Parts breakdown DBS-22 EN

Included in the box

The DBS-22 Drill Bit Sharpening Attachment comes fully assembled and ready to use.

Instructions for the DBS-22 Drill Bit Sharpening Attachment
Magnifying glass to line up the drill bit in the jig
Jig setting template with magnets
One tube of Tormek PTFE lubricant
