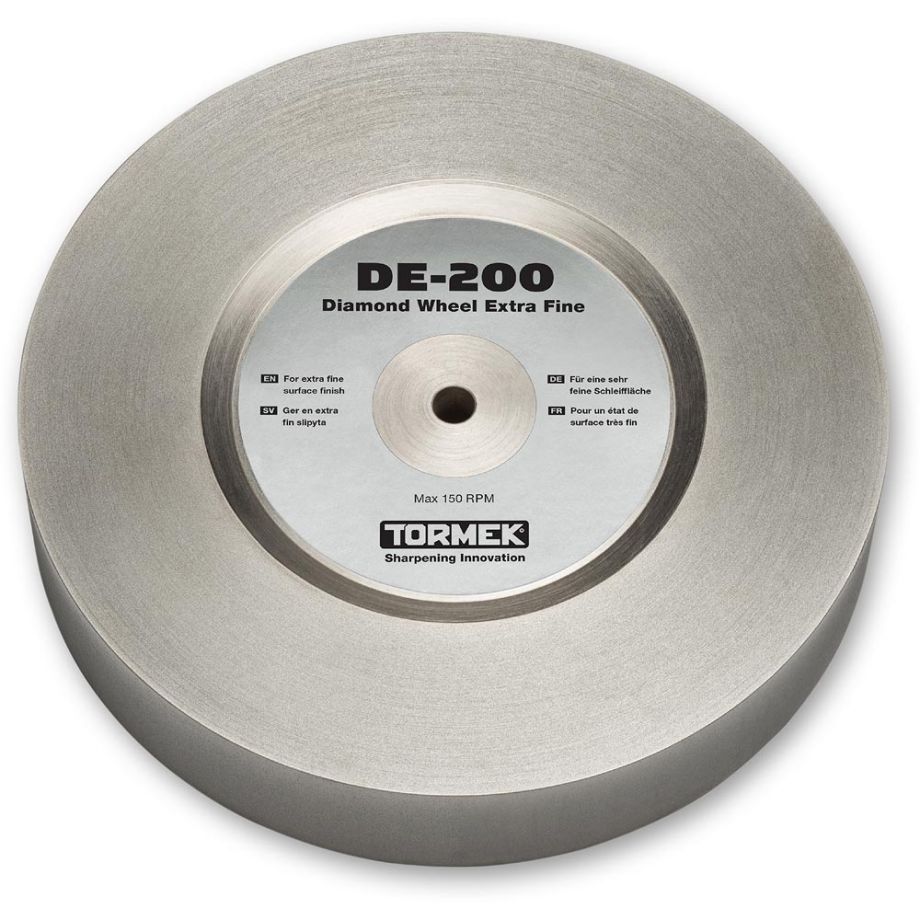

Why DE-200 Diamond Wheel Extra Fine?

• Diamond grinding wheel for Tormek T-4
• Provides an extra smooth finish.
• Constant shape, always maintains the same diameter.
• Sharpens all types of steel and ceramic.
• Allows sharpening on the side of the grinding wheel to get a completely flat bevel.
• Exceptional durability with diamond, the world’s hardest abrasive.

A grinding wheel for all materials
With this diamond wheel, you can sharpen nearly any type of material, including steel, ceramic and carbide. DE-200 Diamond Wheel Extra Fine fits Tormek T-4 Original, Tormek T-4 Bushcraft, Tormek T-3 and earlier models with a 200 mm diameter grinding wheel.

The DE-200 Diamond Wheel Extra Fine is especially appraised by woodcarvers and others who needs their bevels to have a mirror finish. If you need to create a new edge or shape, we recommend you do that on a coarser grinding wheel at first, such as the DC-200 Diamond Wheel Coarse or DF-200 Diamond Wheel Fine. Then you can give the finishing touch with the DE-200 Diamond Wheel Extra Fine for a mirror polish.

Simplifies repeat sharpening
All of Tormek’s diamond grinding wheels have exceptional durability with a constant removal rate and shape, which means that they always stay round and flat with a full-size diameter. Users who often sharpen the same tool benefit greatly from this, as it simplifies both setting up and sharpening.

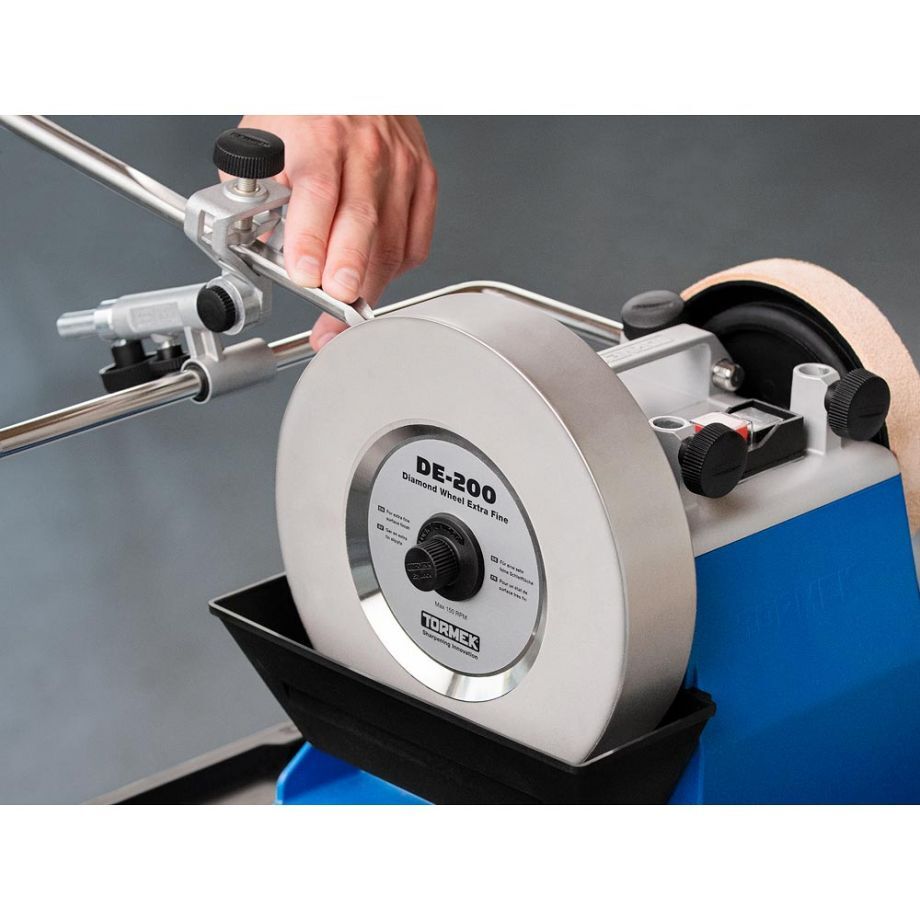

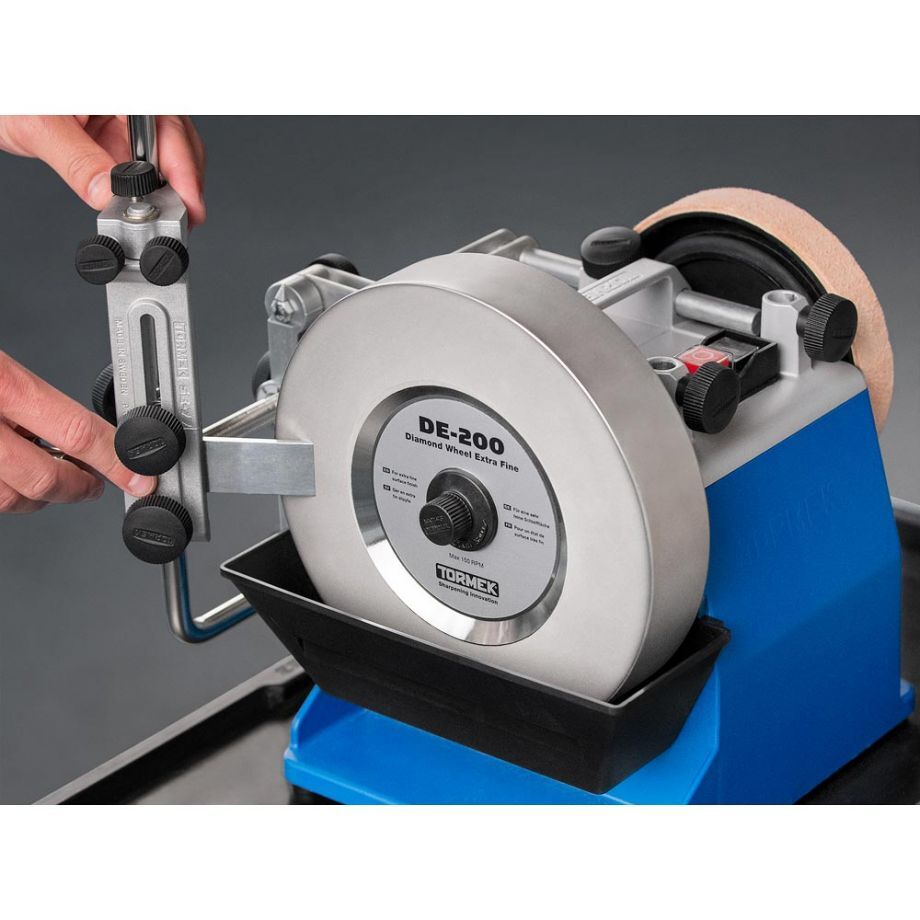

Get a completely flat bevel
The constant shape makes it possible to grind either on the side of the wheel or on its upper surface. Side grinding is perfect for smaller tools such as knives, chisels, carving gouges and v-tools. The result is an edge with a completely flat bevel, instead of a slight hollow grind.

For sharpening on the side of the diamond wheels, we recommend using the MB-102 Multi Base together with the jig designed for your specific tool. Both the base and the jigs give you support and control throughout the sharpening process. If you’re not sure which jig you should use, find out here.

Rust protection for increased service life
All diamond wheels are supplied with 150 ml of ACC-150 Anti-Corrosion Concentrate. Always add the concentrate to the water when sharpening with water to prevent rust on the grinding wheel. Add 10 ml of concentrate to 250 ml water (~4 %). We recommend always using water when sharpening with diamond grinding wheels if possible, as it both prolongs the service life of the wheel and provides a smoother sharpening surface. You can also sharpen without water. Learn more about sharpening with diamond grinding wheels.

Design protected Ⓓ.

Specs and details
Dimensions Grinding Wheel
Diameter: 200 mm (7 7/8”)
Width: 40 mm (1 5/8”)

Weight
Freight weight 3,06 kg (6.75 lbs)

Color
Silver

Material
Machined steel core coated with diamond

Grit
1,200

Warranty
2 year warranty

Document
Important About Diamond Grinding Wheelspdf, 133.7 kB.

Instructions Mounting Grinding Wheelspdf, 2 MB.

Material safety data sheet ACC-150 ENpdf, 188.2 kB.

Patent
To see all patents visit tormek.com/patents

Included in the box
DE-200 Diamond Wheel Extra Fine comes fully assembled and ready to use.

1 bottle of ACC-150 Anti-Corrosion Concentrate that makes the water corrosion inhibitant.
