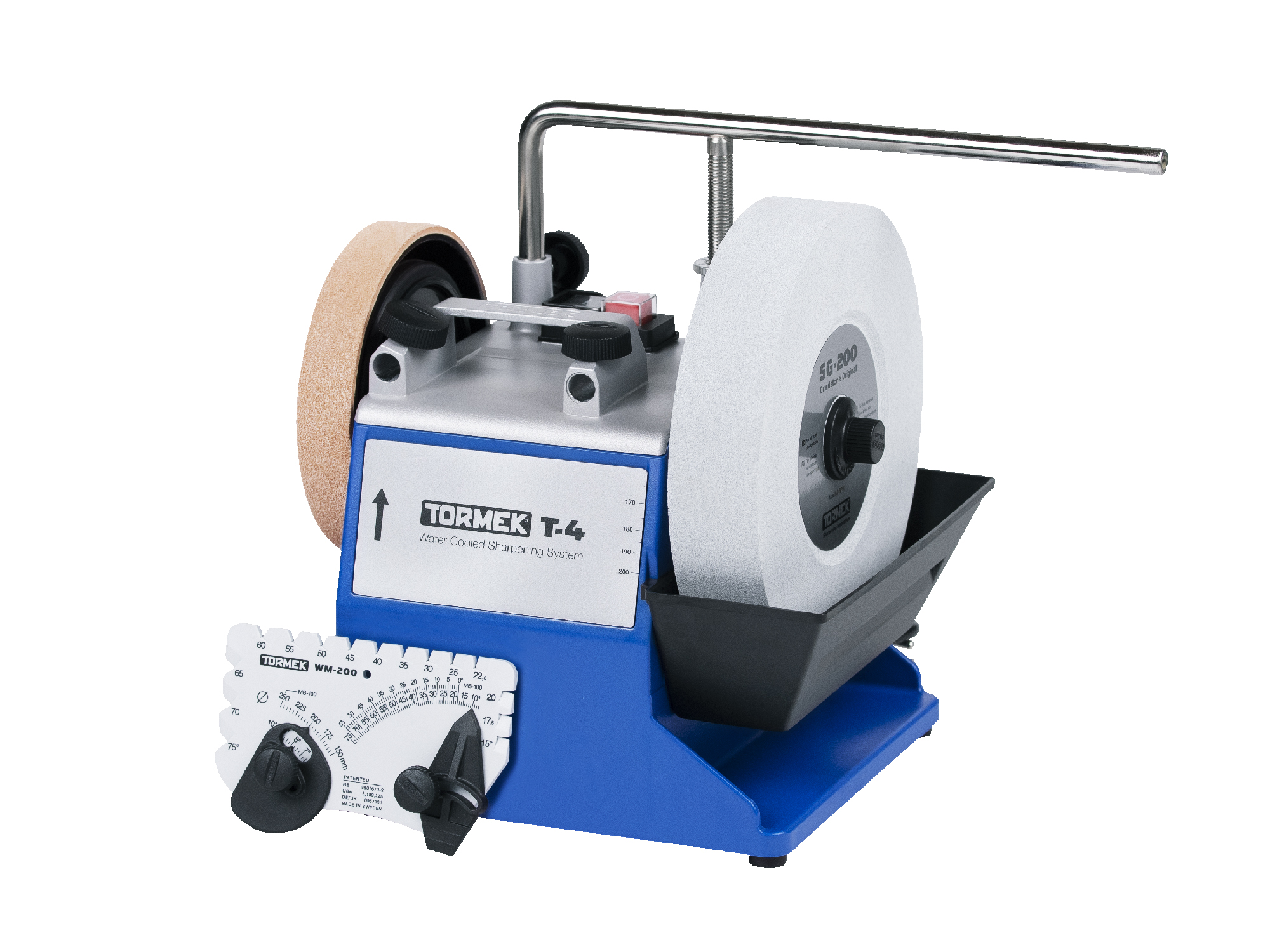

Tormek T-4 Water Cooled Sharpening System with NVR Switch

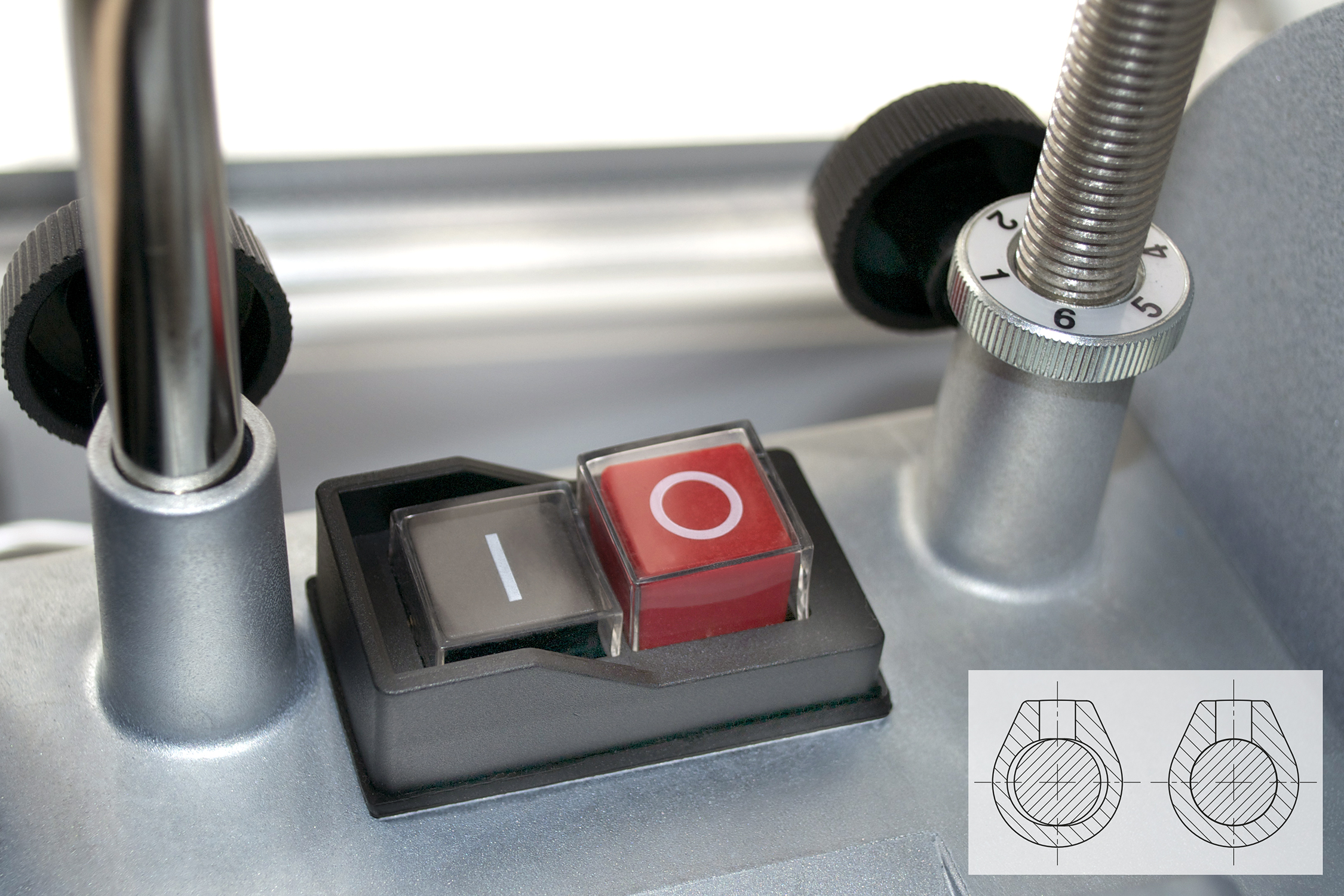

The Tormek T-4 incorporates new, innovative, patent pending features. Firstly, the zinc cast top incorporates the key components of the main shaft, Universal Support and motor assembly resulting in superb accuracy as standard. Secondly, the Universal Support is held in two sleeves in the zinc cast top, meaning that the improved locking design and tighter tolerances will give even better results. Both designs give improved accuracy and precision for easy sharpening on the new Tormek T-4.

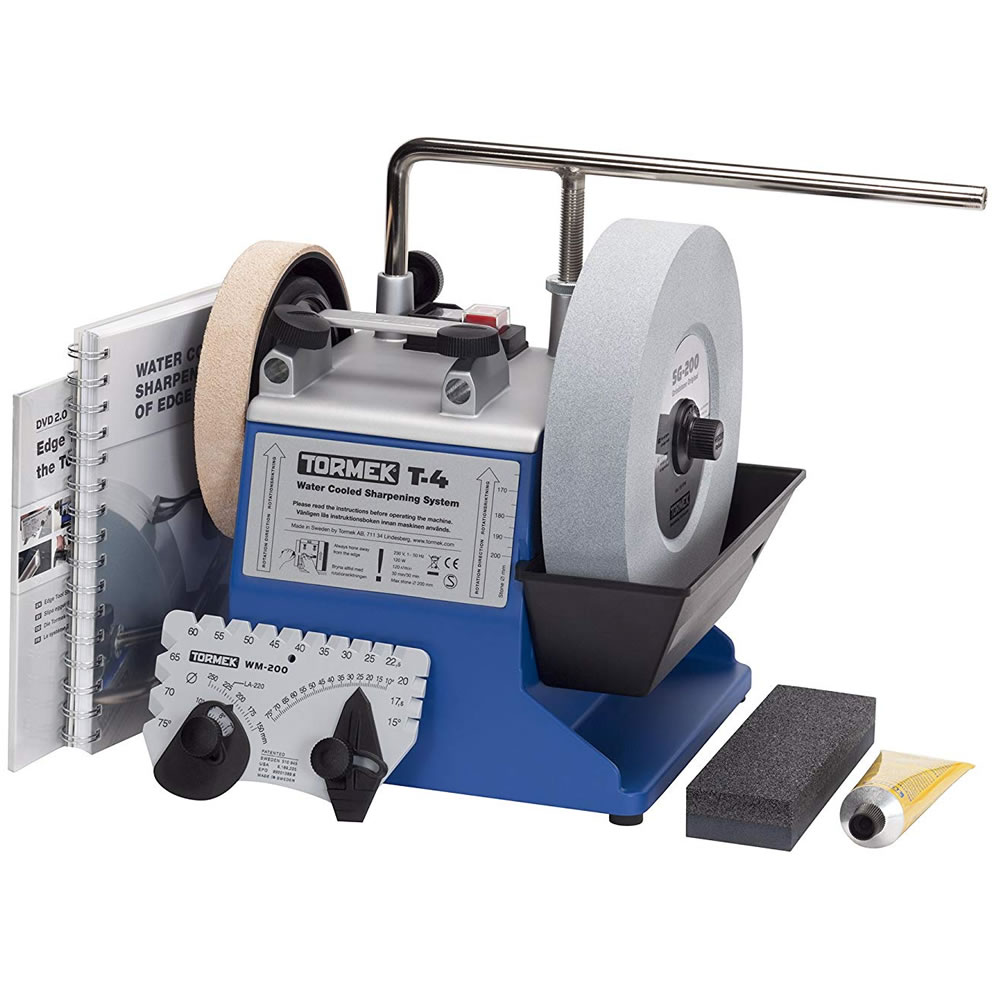

The T-4 model is the latest incarnation in a long line of Tormek water-cooled grinding systems. In common with its larger sibling, the T-8, it is ideal for sharpening cabinetmaking hand tools, knives, scissors and woodcarving and turning tools. It comes supplied with two useful accessories, the first of which is the SP-650 Stone Grader that can be used to keep the stone cutting efficiently as well as changing the surface from a (220g) coarse cut to (1,000g) fine. The equivalent of 6,000g can be achieved on the leather wheel. The second is the AngleMaster, an adjustable device used to set the correct angle for grinding plane and chisel blades. Magnets on the reverse side of the AngleMaster mean that it is easy to store it conveniently on the steel machine plate.

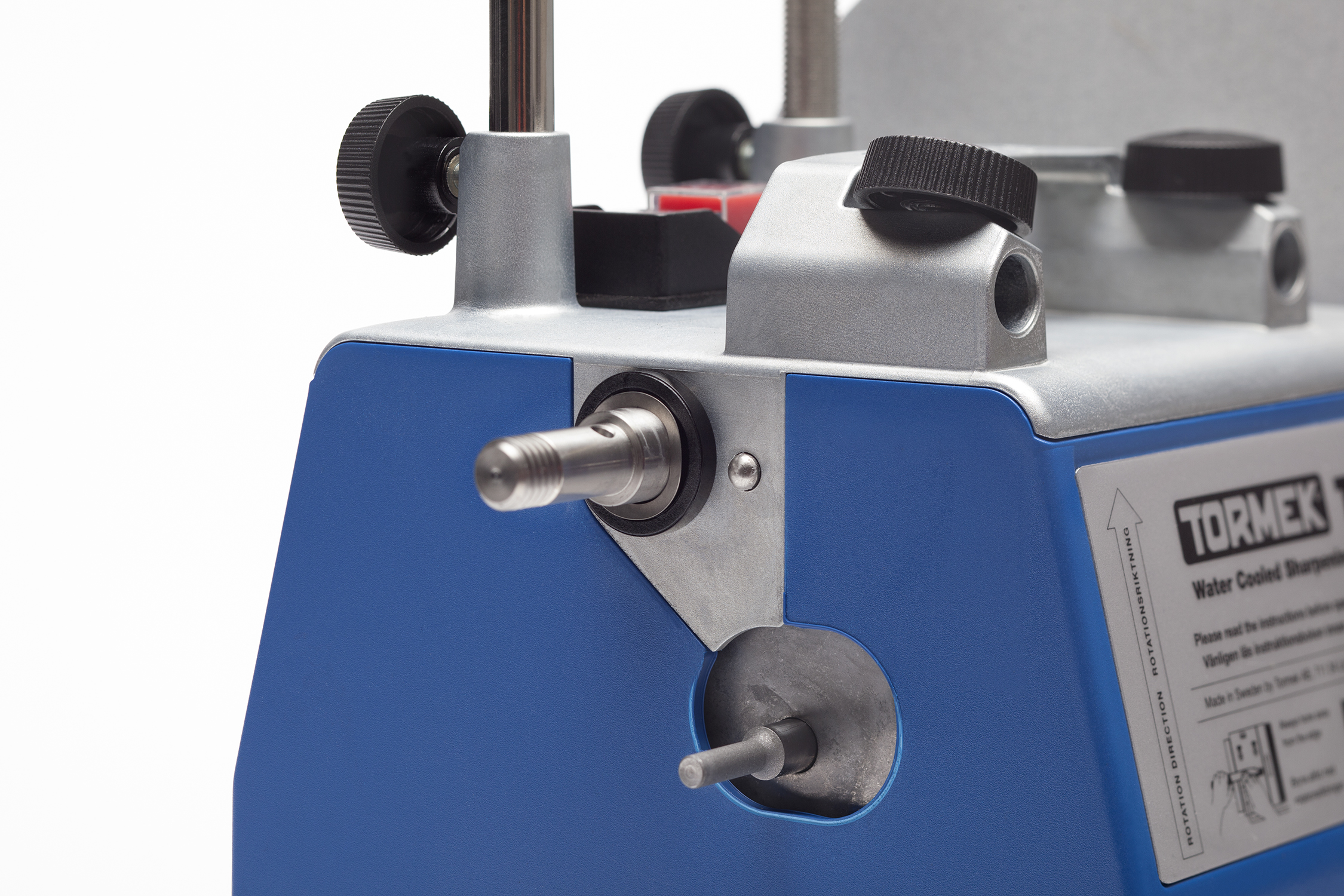

This is the first machine for some time to be supplied without a jig, so for instant sharpening, a jig of choice needs to be purchased from the many available, all of which will fit the Tormek T-4.Also supplied is the unique Tormek Handbook, where all the information that is required to shape, sharpen and hone your tools to perfection can be found. The T-4 uses a powerful, industrial AC motor and the shaft supporting the wheels is made from corrosion resistant stainless steel.

The 200mm (8″) diameter stone has the Tormek EzyLock mounting system for fast stone changes without a spanner. Supplied with the SP-650 Stone Grader, unique Tormek Handbook and DVD together with Tormek’s 7 year warranty

Specification for Tormek T-4 Water Cooled Sharpening System with NVR Switch:

• Model T-4
• Nett Weight 7.4kg
• Overall L x W x H 230 x 200 x 260mm
• Power 120W
• Wheel Diameter 200mm(8″)
• Wheel Width 40mm(1.5/8″)
