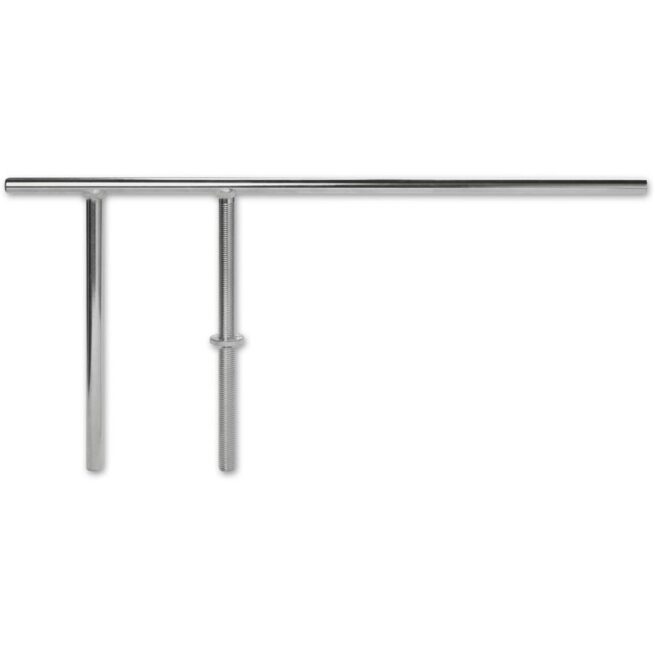

TORMEK US-430 UNIVERSAL SUPPORT EXTENDED

TORMEK US-430 UNIVERSAL SUPPORT EXTENDED (SKU: TOR-US-430)

£67.00   £80.40 inc VAT

Longer universal support for longer and higher tools

The US-430 Extended Universal Support is designed for sharpening long or tall tools, such as long knives, meat cleavers and machetes. Like our other universal supports, it has a Micro Adjust scale for precision setting of the sharpening angle.

Overview

Why US-430 Extended Universal Support?

  • Longer support for sharpening long tools.
  • Taller support for sharpening tall tools.
  • Easy to mount– just insert into the precision mounts.
  • Fits the Tormek T-8, Tormek T-7, Tormek T-4, Tormek T-3 and older models.

For longer and taller tools

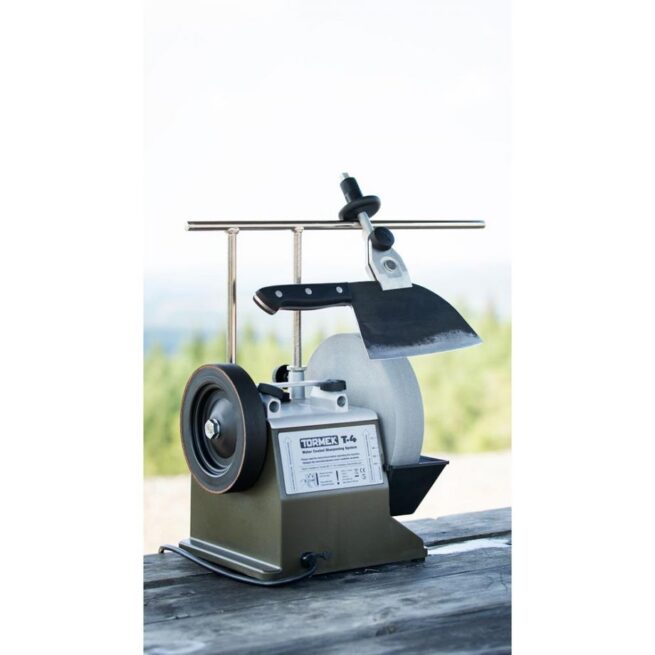

The US-430 Extended Universal Support is designed for anyone sharpening particularly long or tall tools. Sometimes your regular universal support just isn’t enough, either in length or in height. You might be sharpening a tall meat cleaver or a long knife, for example.

The SE-77 Square Edge Jig stop function, that prevents the tool slipping off the grinding wheel, doesn’t work with the US-430 Extended Universal Support as it is too long for that.

Fits your Tormek
The US-430 Extended Universal Support fits the Tormek T-8, Tormek T-7, Tormek T-4, Tormek T-3 and older models. The universal support is 436 mm (17 1/8″) long and 212 mm (8 3/8″) high. You can position it vertically for sharpening into the edge (edge leading), horizontally for sharpening away from the edge (edge trailing), or horizontally for honing with jigs. Like our other universal supports, the US-430 Extended Universal Support also works with the MB-102 Multi Base for sharpening on the side of diamond grinding wheels.

Specs and details

Weight
Shipping weight 0.87 kg (1.92 lb)

Color
Silver

Material
Nickel-plated steel

Warranty
2-year warranty

Patents
To see all patents, please visit tormek.com/patents

Included in the box
The US-430 Extended Universal Support comes fully assembled and ready to use.

Tool category: Sharpening, TORMEK SHARPENING MACHINES & ACCESSORIESTool SKU: TOR-US-430

PRICES INCLUDE UK MAINLAND SHIPPING

Share on:

More Information

The bar is 436mm long, including a 50mm extension on one the side. The extra length makes it possible to use your Tormek machine to sharpen long chef’s knives or even machetes.

The side extension covers the honing wheel, so you don’t need to remove the bar and flip it for honing. The legs are over 50mm longer than the standard US-105 Universal Support, making it possible to raise the bar sufficient to accommodate wide cleavers using the standard SVM-45 knife jig. Like the standard universal support bars, one leg features a screw thread offering micro-adjustment with a scale for precise setting of the edge angle.

Fits Tormek T-8/T-7/T-4/T-3 and older Tormek models.

Key Features

  • Sharpen extra long knives and wide cleavers
  • Micro adjustable for precise setting of edge angles
  • 50mm side extension covers honing wheel
  • Extra height accommodates wide cleavers
  • Fits Tormek T-8/T-7/T-4/T-3 and older Tormek models
  • Length: 436mm, height: 212mm

TORMEK US-430 UNIVERSAL SUPPORT EXTENDED – help is available

  • Livechat is available if you would like any help with this product. Just mention “TORMEK US-430 UNIVERSAL SUPPORT EXTENDED” in the chat.
  • Call Chronos on (01582) 471900 for more info.
  • Email Chronos at sales@chronos.ltd.uk
