Tormek WM-200 Pro-AngleMaster

Tormek WM-200 Pro-AngleMaster (SKU: TOR-WM-200)

£21.00- (£25.20 inc VAT.)

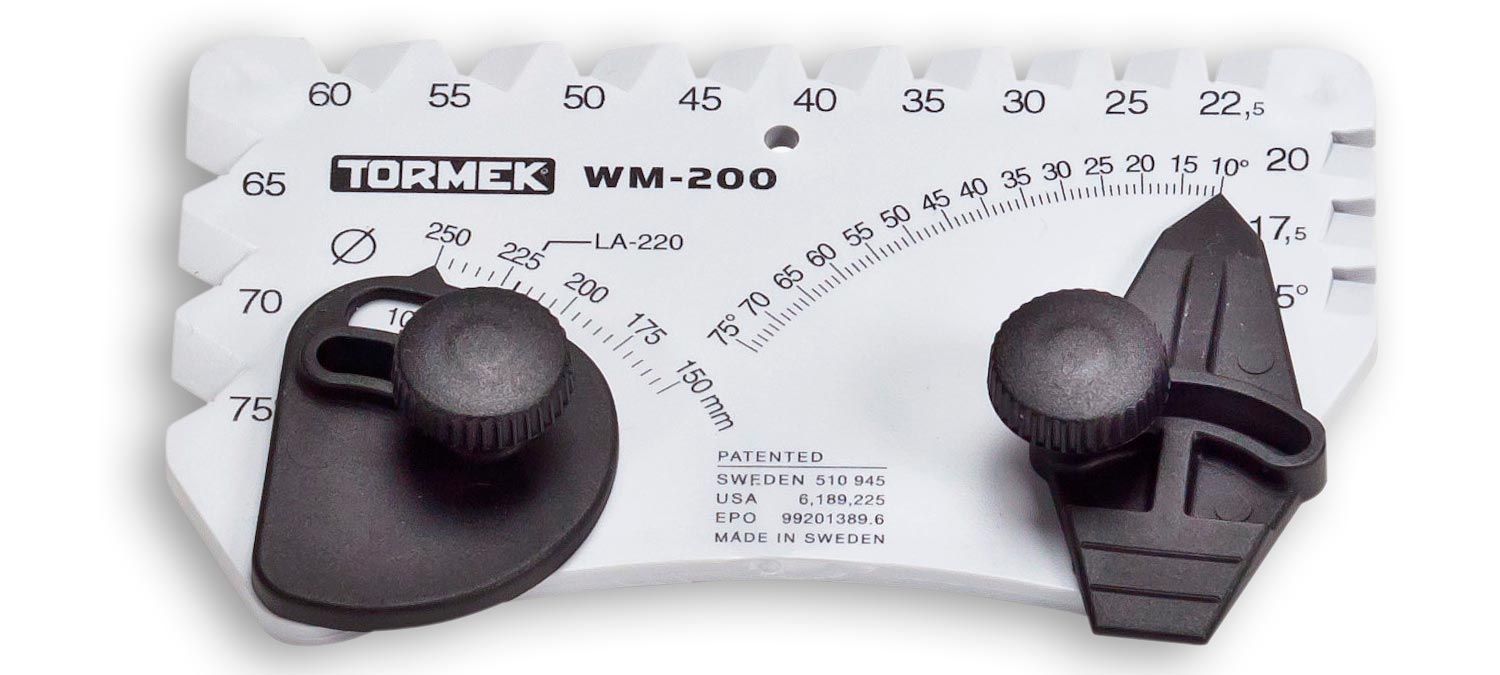

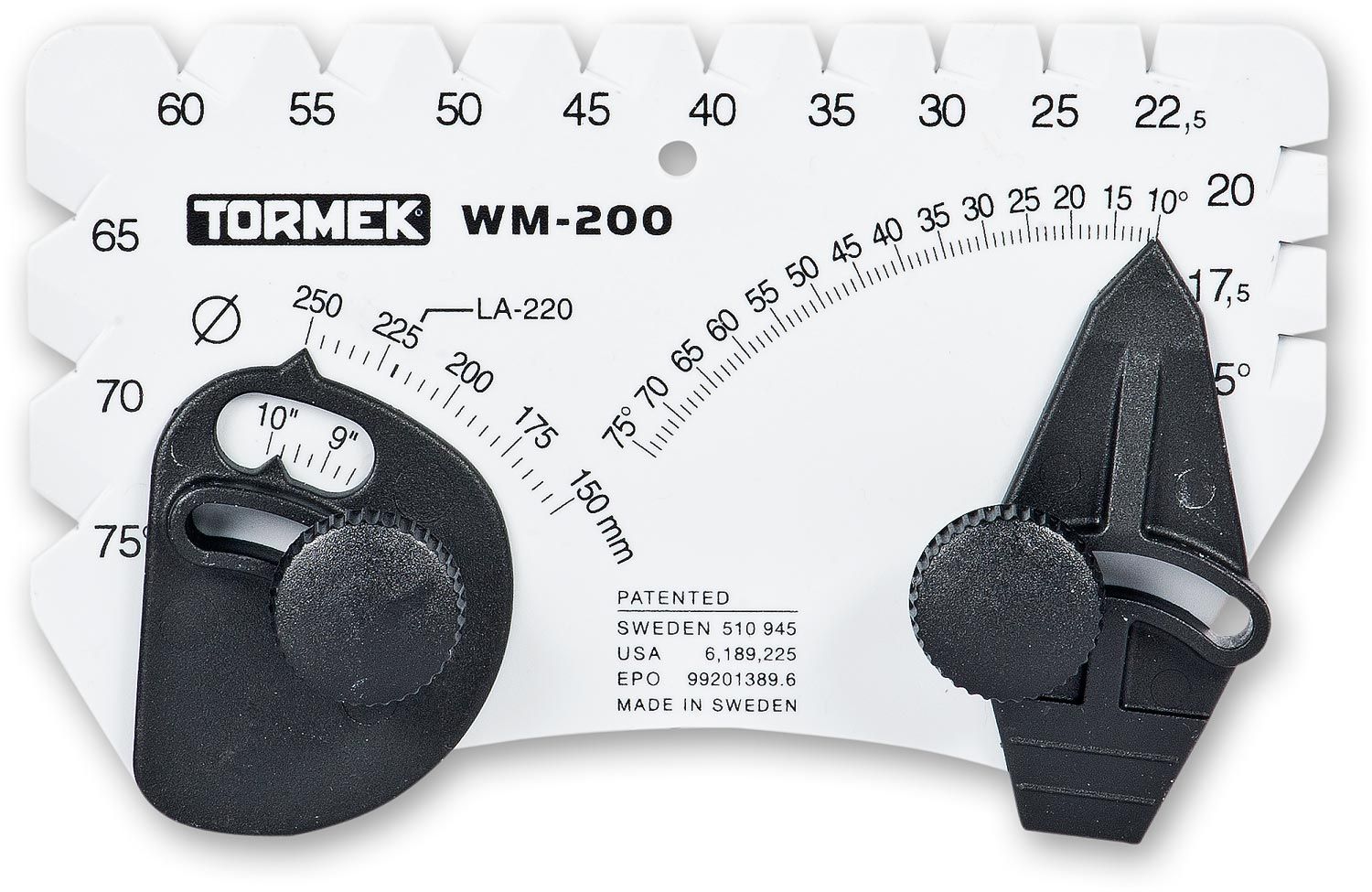

Set the correct sharpening angle easily and precisely

The Tormek WM-200 AngleMaster has several smart features. You can use it to set the jig before sharpening, or to measure an existing bevel angle of a tool. It can also be adjusted to the diameter of the grinding wheel, and you can easily set the sharpening angle for sharpening on the side of a diamond grinding wheel as well.

Overview

Why WM-200 AngleMaster?

  • Measures the existing bevel angle of the tool.
  • Set the jig to the desired sharpening angle before sharpening.
  • Easy to use.
  • Works on grinding wheels from 150 mm (5 7/8″) to 250 mm (9 7/8″) in diameter.
  • Works with the Tormek T-8, Tormek T-4 and older models.

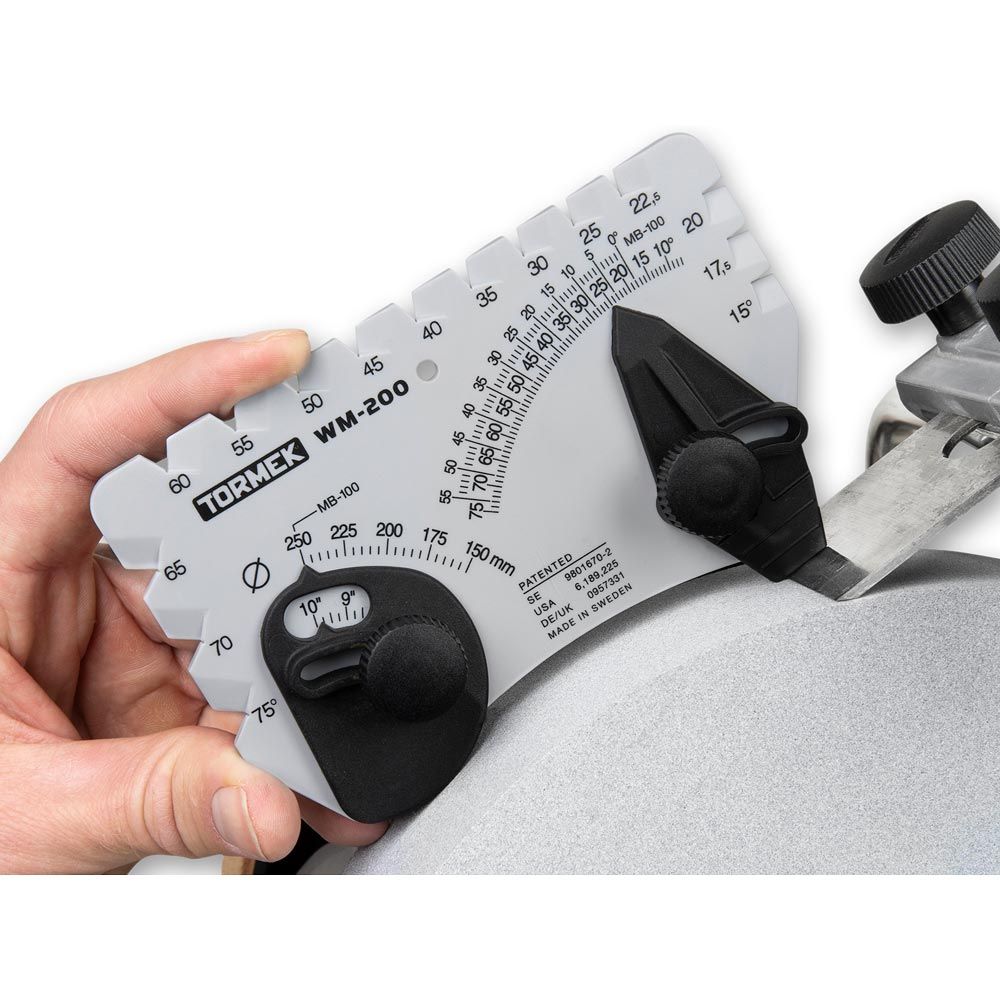

Sharpen at exactly the right angle
The sharpening angle can be set from 10° to 75° with the WM-200 AngleMaster. The AngleMaster is designed to work on all grinding wheels with a diameter from 150 mm (5 7/8″) to 250 mm (9 7/8″). So you get an accurate setting even if you have a grindstone that’s been worn down a lot.

The right angle at your fingertips
The WM-200 AngleMaster has two magnets so you can easily place it on the machine so that it’s always close to hand. This applies to all Tormek models except for the 1200 and T-3. On the Tormek T-4, you can place the AngleMaster on the machine plate, which is made of metal; and on the Tormek T-8 you can place it on the plate mount included.

Specs and details
Weight
Shipping weight 0.10 kg (0.22 lb)

Color
Gray/black

Material
Plastic

Warranty
2-year warranty

Documents
Instructions WM-200 ENpdf, 506.1 kB.
Parts breakdown WM-200 EN

Included in the box

The WM-200 AngleMaster comes fully assembled and ready to use.
Instructions for the WM-200 AngleMaster.

Out of stock

Tool category: Sharpening, TORMEK SHARPENING MACHINES & ACCESSORIESTool SKU: TOR-WM-200

PRICES INCLUDE UK MAINLAND SHIPPING

Share on:

More Information

Key Features

  • Angle setting with pin point accuracy
  • For grindstones of 6° to 10°
  • Angle checking notches

  • The WM-200 gives angle setting with pin point accuracy from 15° to 75° on grindstones of 6″ to 10″ in diameter, thus taking into account wear after years of use. The WM-200 is also provided with angle checking notches around its edge to enable bevel angles to be repeated or progress checked. (Supplied as standard with 1206, 2006 and T-7).
