Universal Cutter Grinder- (SKU: XP131)

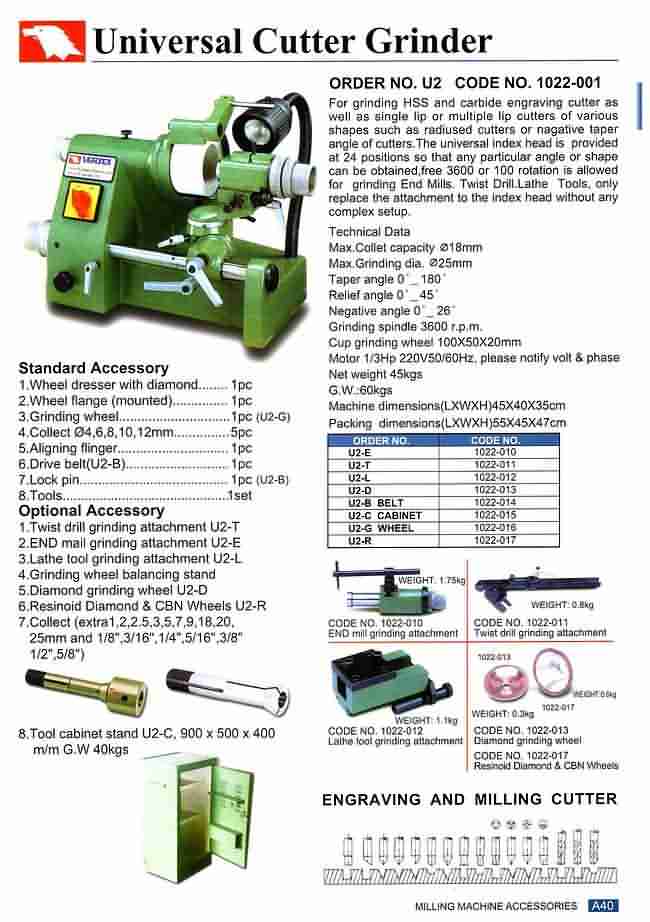

The UNIVERSAL CUTTER GRINDER is excellent for grinding HSS & carbide engraving cutters or multiple lip cutters in a various shapes such as radiused or negative taper. The universal index head is adjustable in 24 different positions so that any particular angle can be obtained and free rotation is allowed for the grinding of endmills , slot drills and twist drills etc.STANDARD ACCESSORIES – Wheel Dresser with Diamond -Wheel Flange- Grinding Wheel – 4 Collets – aligning Finger- Drive Belt – Lock Pin – Tools
Specification
Max Collet Capacity 18 mm
Max Grinding Diameter 25 mm
Taper Angle 0-180′
Relief Angle 0-45′
Negative Angle 0-26′
Grinding Spindle Speed 3600 RPM
Cup Grinding Wheel 100x50x20 mm
Motor 1/3 HP
Weight 45KGS
– SPECIAL OFFER!!

£896.98.

Out of stock

Tool categories: Universal Cutter Grinder MachineSKU: XP131

PRICES INCLUDE SHIPPING TO UK MAINLAND

Share on:

The UNIVERSAL CUTTER GRINDER is excellent for grinding HSS & carbide engraving cutters or multiple lip cutters in a various shapes such as radiused or negative taper. The universal index head is adjustable in 24 different positions so that any particular angle can be obtained and free rotation is allowed for the grinding of endmills , slot drills and twist drills etc.STANDARD ACCESSORIES – Wheel Dresser with Diamond -Wheel Flange- Grinding Wheel – 4 Collets – aligning Finger- Drive Belt – Lock Pin – Tools
Specification
Max Collet Capacity 18 mm
Max Grinding Diameter 25 mm
Taper Angle 0-180′
Relief Angle 0-45′
Negative Angle 0-26′
Grinding Spindle Speed 3600 RPM
Cup Grinding Wheel 100x50x20 mm
Motor 1/3 HP
Weight 45KGS
