The Vertex BS1 dividing head comprises of head stock, tail stock, set 3 dividing plates and chuck back plate.
The spindle noses are threaded for a chuck. Both the phosphor bronze worm and the spindle are hardened and ground. The head can divide in any angle by the direct, indirect or differential methods. Ratio between the work and the worm gear is 40:1. A 24 hole plate is also fitted for quick indexing of simple numbers. The spindle is rigidly held in a taper roller bearing and the swivel head can be locked at any angle from -10-90′.
Supplied complete with test certificate Centre height is 128 mm.
This is a complete set for any small milling machine or column drill with a movable table, specially designed for the metal mechanic hobbyist.

The dividing head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1.
Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
The swivel head can be locked of any angle from 10° below horizontal to 90° vertical-precision fitting to base assures smooth rotation.
Threaded spindle nose and 24 holes dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24.
Easy indexing of all numbers from 2 to 50 and many numbers from 52 of 380.
Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.
Dividing head fitted with standard accessories like tailstock and dividing plates A, B & C.
Diameter of spindle hole, 20 mm.
Taper of the center, MT-3

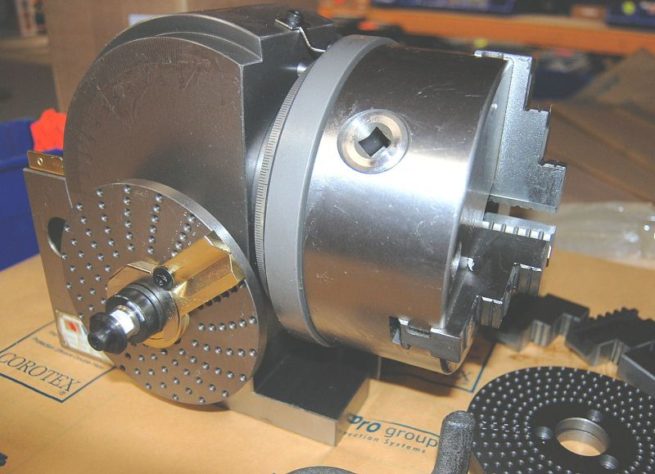

THIS MODEL DOES NOT INCLUDE THE CHUCK PICTURED – PLEASE SEE ITEM ABOVE
